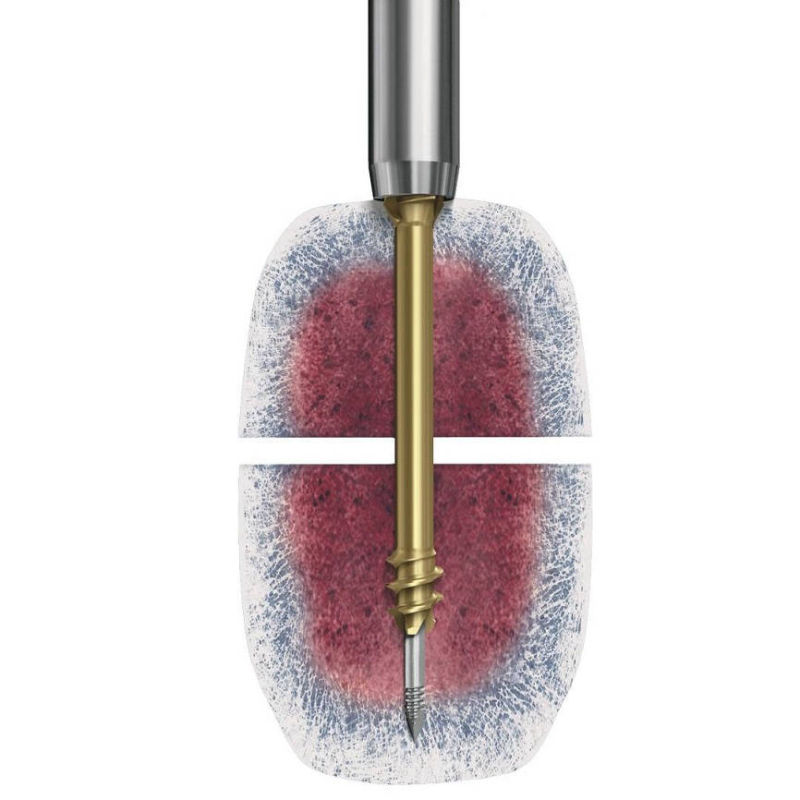

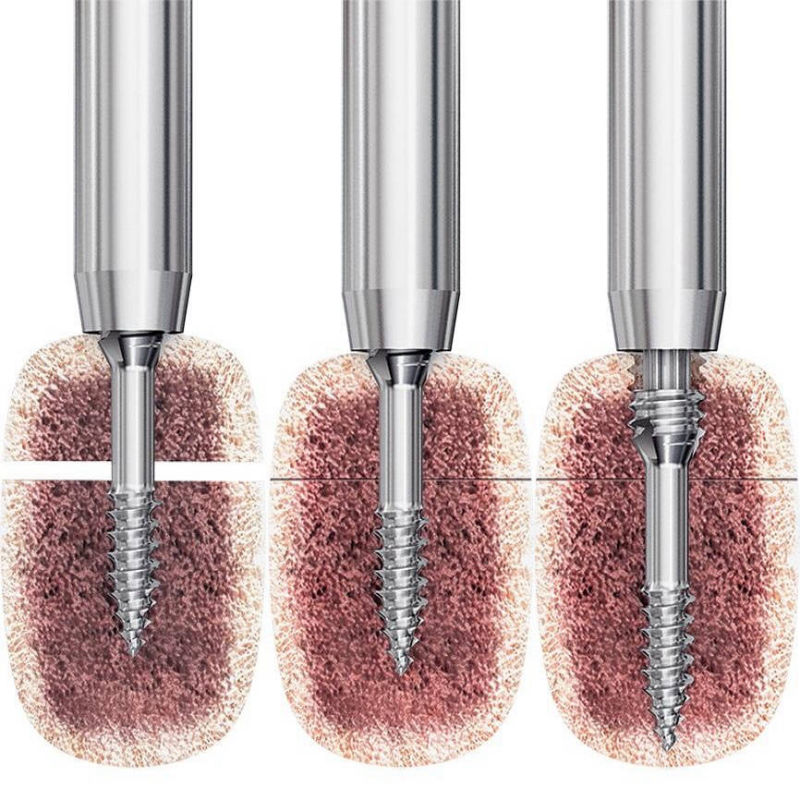

1.5 mm Headless Compression Screw
The 1.5 mm Headless Compression Screws are self-drilling, self-tapping headless screws that allow surgeon controlled compression and a simplified technique. Examples of when to use the 1.5 mm headless compression screws:

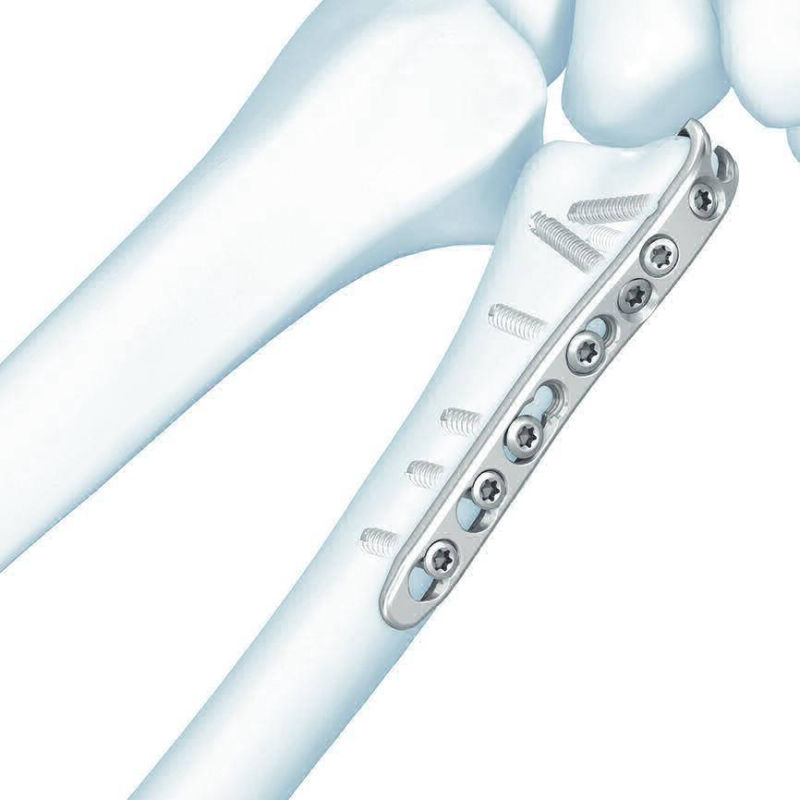

2.0 mm LCP® Distal Ulna Plate
- Anatomically contoured to fit the distal ulna.
2.4 mm and 3.0 mm Headless Compression Screws
- Cannulated for guided screw insertion with 1.1 mm guide wire.

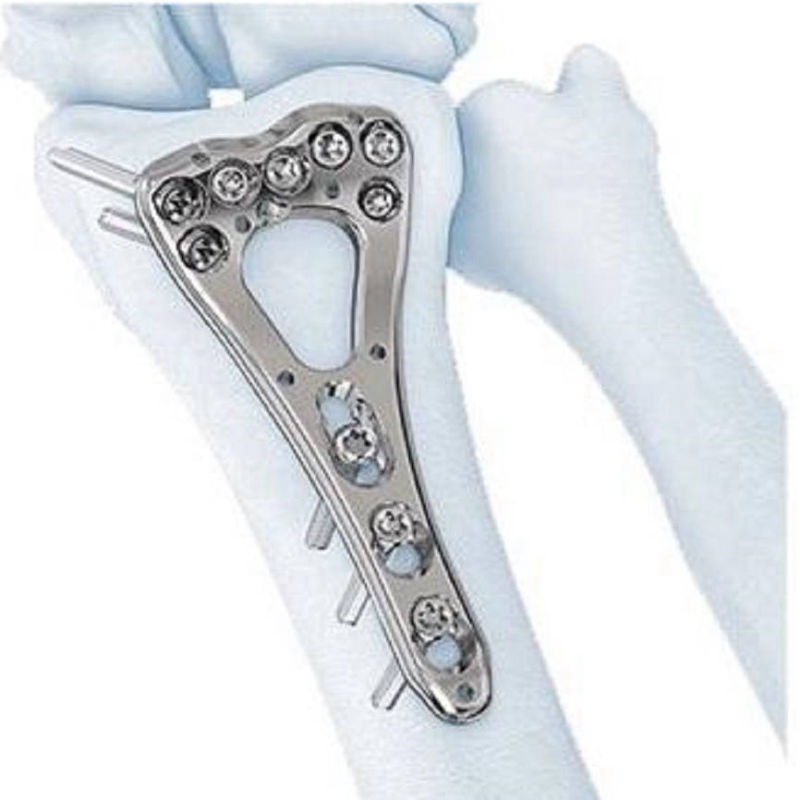

2.4mm Variable Angle LCP® Two-Column Volar Distal Radius Plate
Variable angle LCP (VA LCP) System holes in the head of the plate combined with variable angle locking screws allow up to 15° off-axis angulation in all directions.

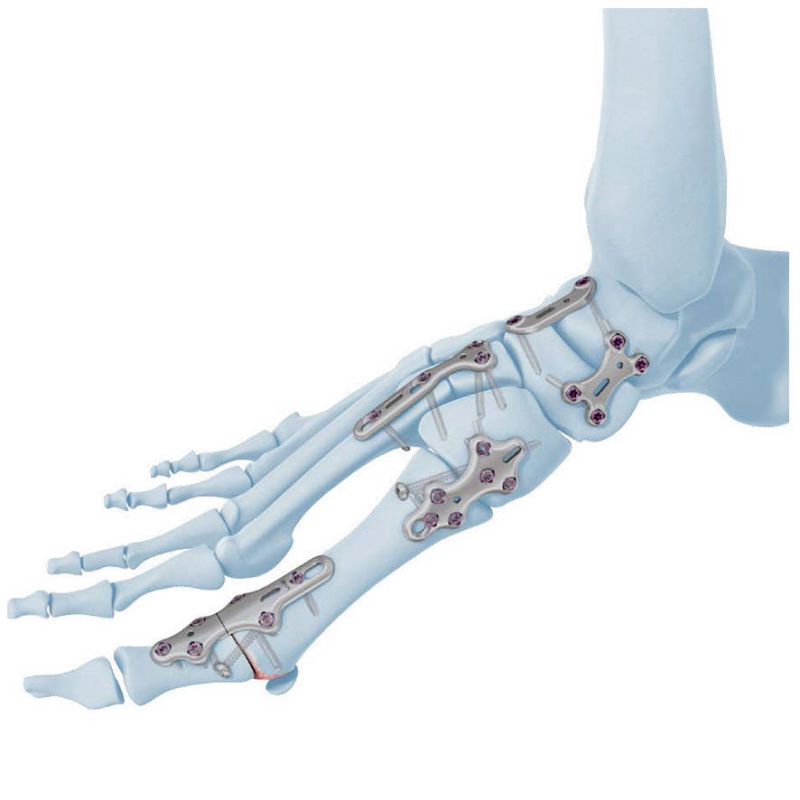

2.4mm/2.7mm Variable Angle LCP® Forefoot/Midfoot System
The 2.4 mm / 2.7 mm Variable Angle LCP® Forefoot/Midfoot System is a comprehensive plating system that includes procedure-specific, anatomic plates for osteotomies, fusions and fractures of the foot. The system incorporates variable angle locking screw technology and a compression feature to aid in reconstructive foot surgery.

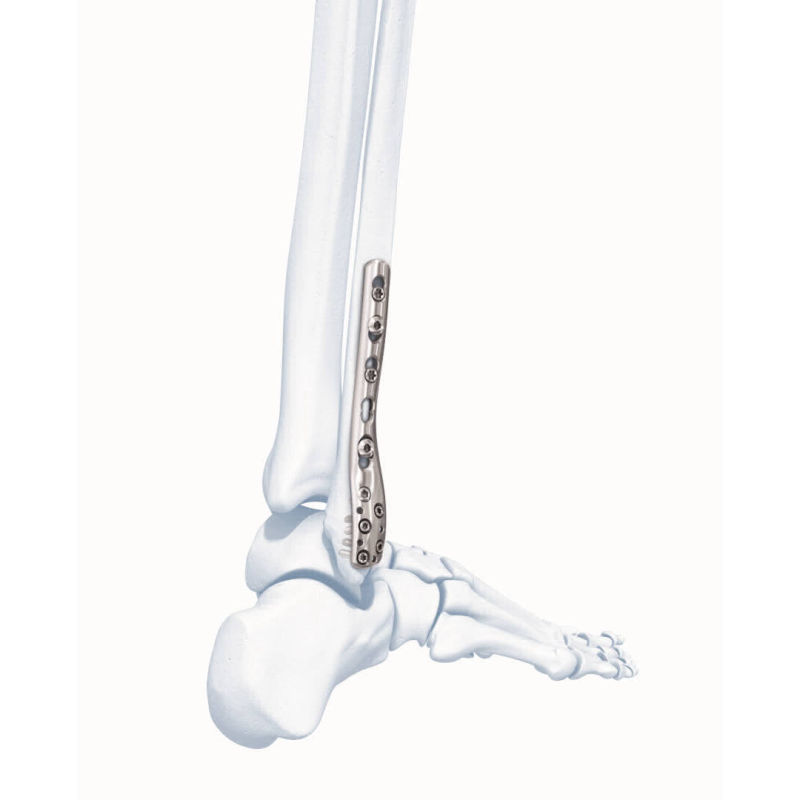

2.7 mm/3.5 mm LCP® Distal Fibula Plate System
The 2.7 mm/3.5 mm LCP Distal Fibula Plates are indicated for fractures, osteotomies, and nonunions of the metaphyseal and diaphyseal region of the distal fibula, especially in osteopenic bone.

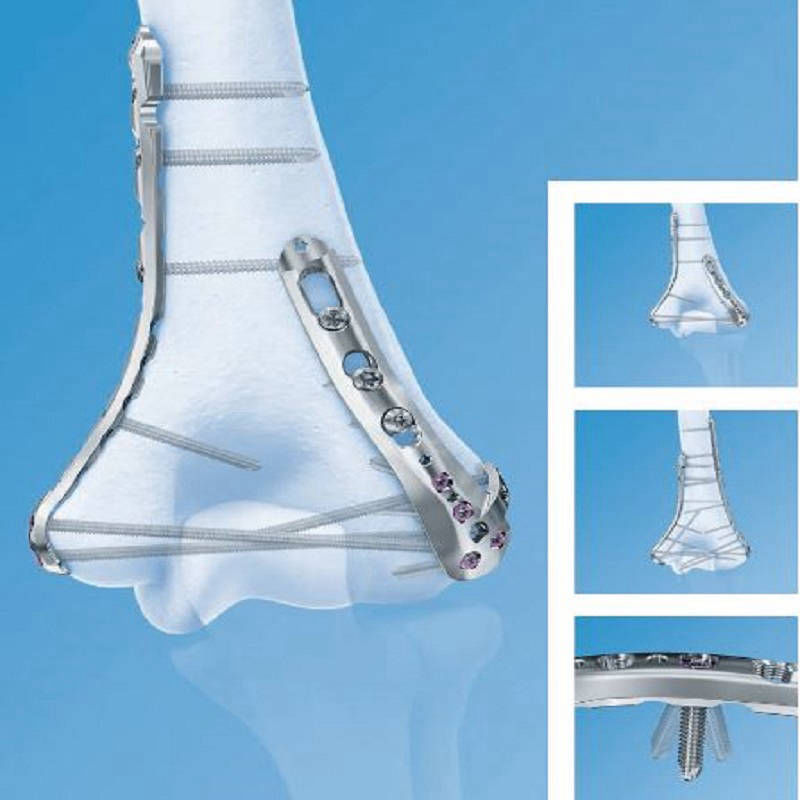

VA-LCP Distal Humerus Plates 2.7/3.5
The 1.5 mm Headless Compression Screws are self-drilling, self-tapping headless screws that allow surgeon controlled compression and a simplified technique. Examples of when to use the 1.5 mm headless compression screws:

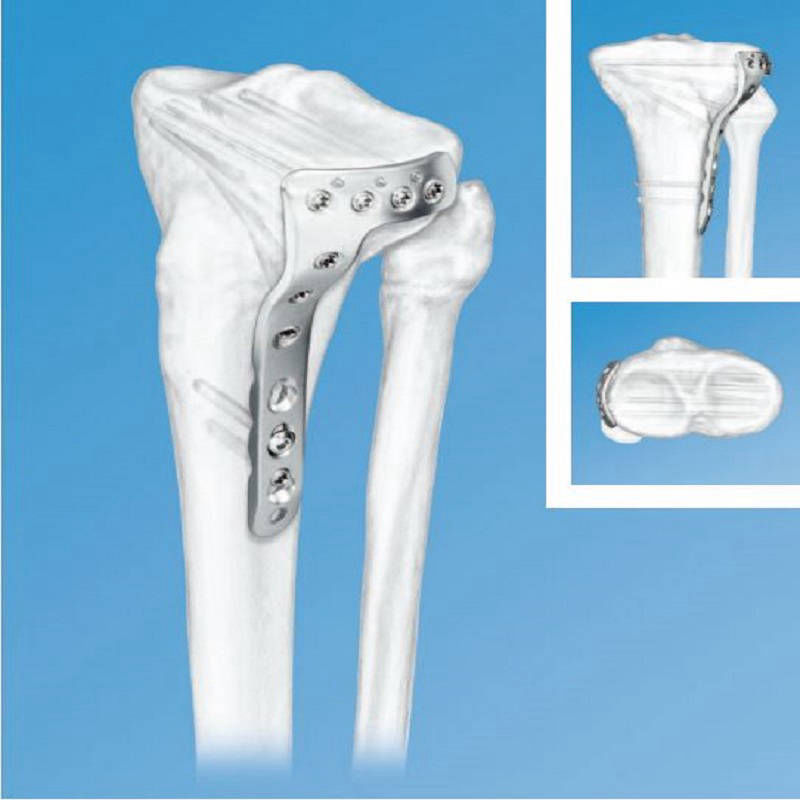

3.5 mm LCP® Posteromedial Proximal Tibia Plate
- Plate tapers from 3.4 mm to 1.9 mm thick, distal to proximal.

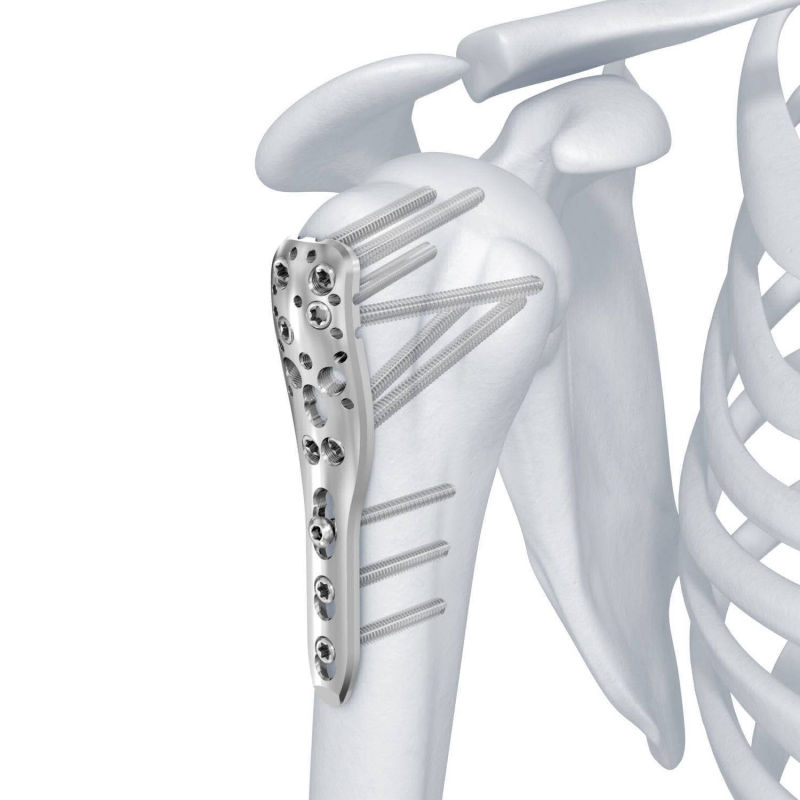

3.5 mm LCP® Proximal Humerus Plate
The 3.5 mm LCP® Proximal Humerus Plate is indicated for fractures and fracture dislocations, osteotomies and nonunions of the proximal humerus, particularly for patients with osteopenic bone.

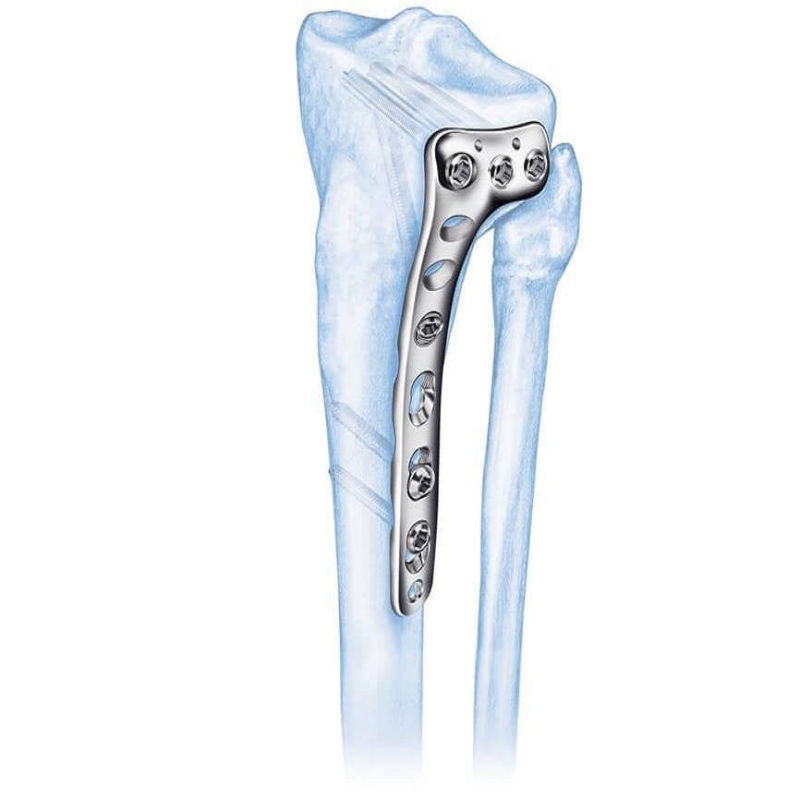

3.5 mm LCP® Proximal Tibia Plate
Available in left and right plates. Plates available in implant-quality 316L stainless steel or commercially pure (CP) titanium.
3.5 mm LCP® Superior and Superior Anterior Clavicle Plate
The 3.5 mm LCP Clavicle Plates combine locking screw technology with conventional plating techniques.

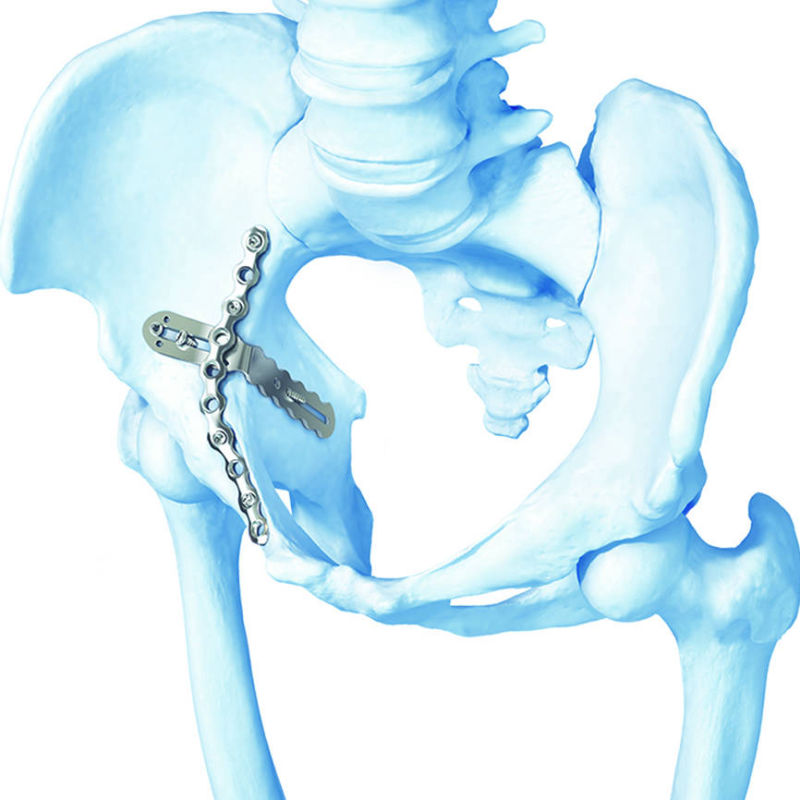

3.5 mm Low Profile Pelvic System
Features & Benefits
The 3.5 mm Low Profile Pelvic Plates are stainless steel with a uniform cross section and low profile design to improve contourability and reduce soft tissue irritation.

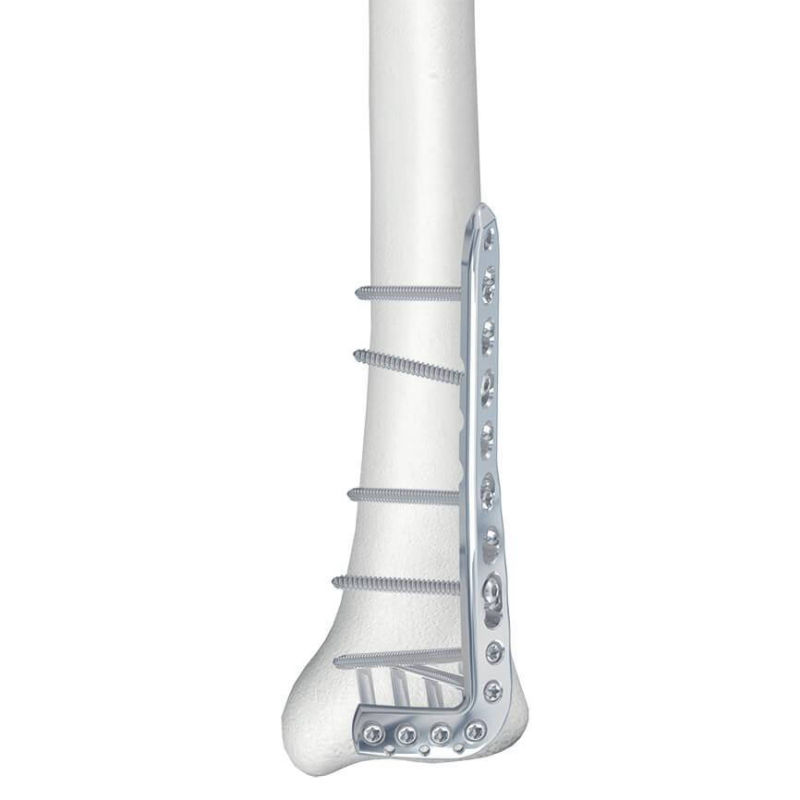

3.5mm LCP® Anterolateral Distal Tibia Plates
- Anatomically shaped .

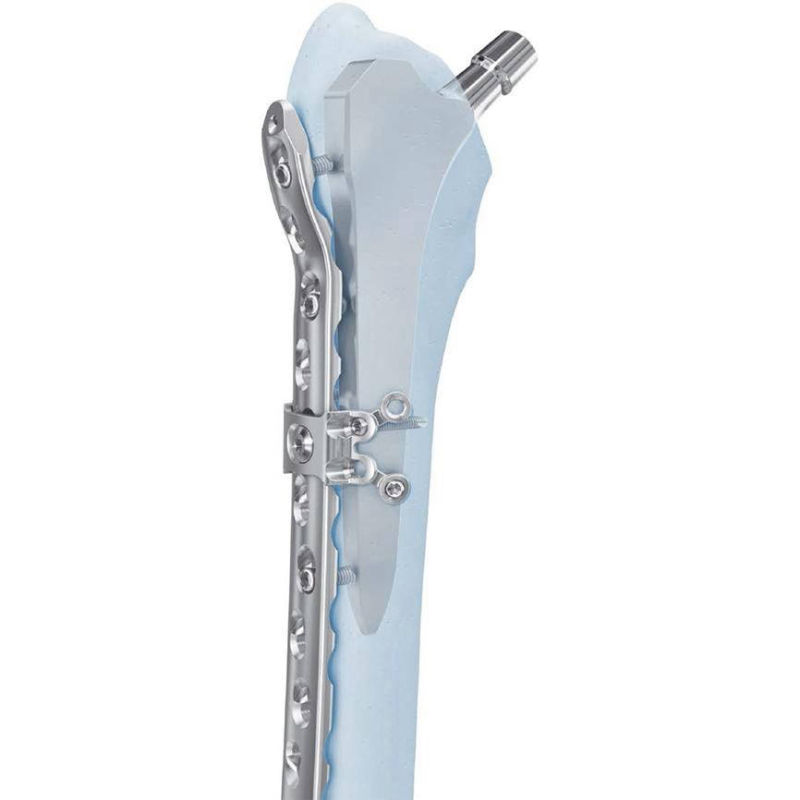

3.5mm Locking Attachment Plate
- Compatible with the Synthes 4.5 mm locking compression plate (LCP)
3.5mm Quadrilateral Surface Plate
The DePuy Synthes 3.5 mm Quadrilateral Surface Plates are part of the 3.5 mm Low Profile Pelvic System, which offers implants and instruments for pelvic and acetabular reconstructive surgery.

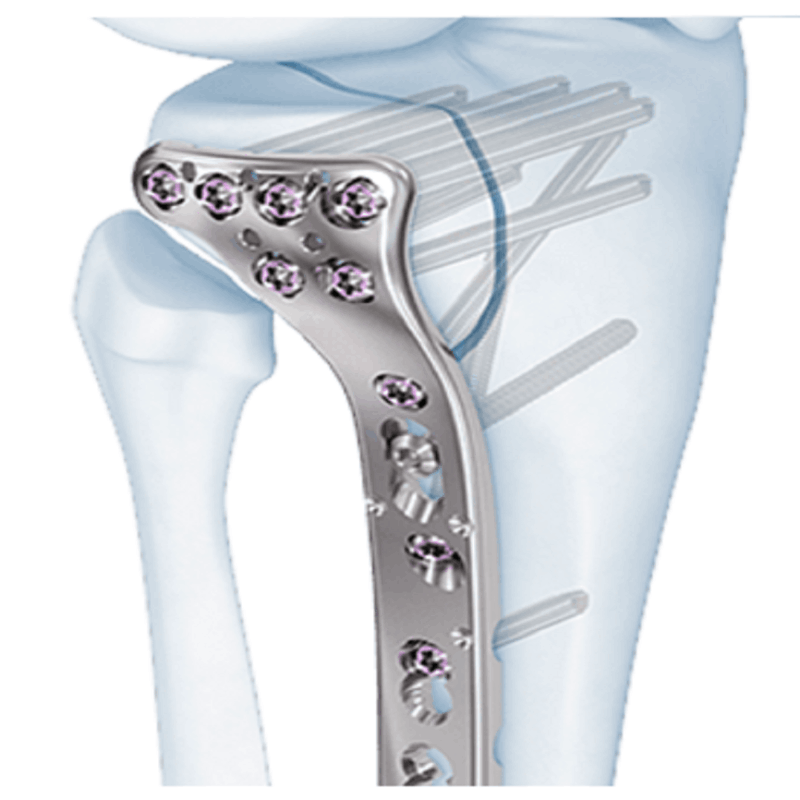

3.5mm VA LCP® Proximal Tibia Plate
- Plate includes variable angle locking holes and variable angle COMBI holes .

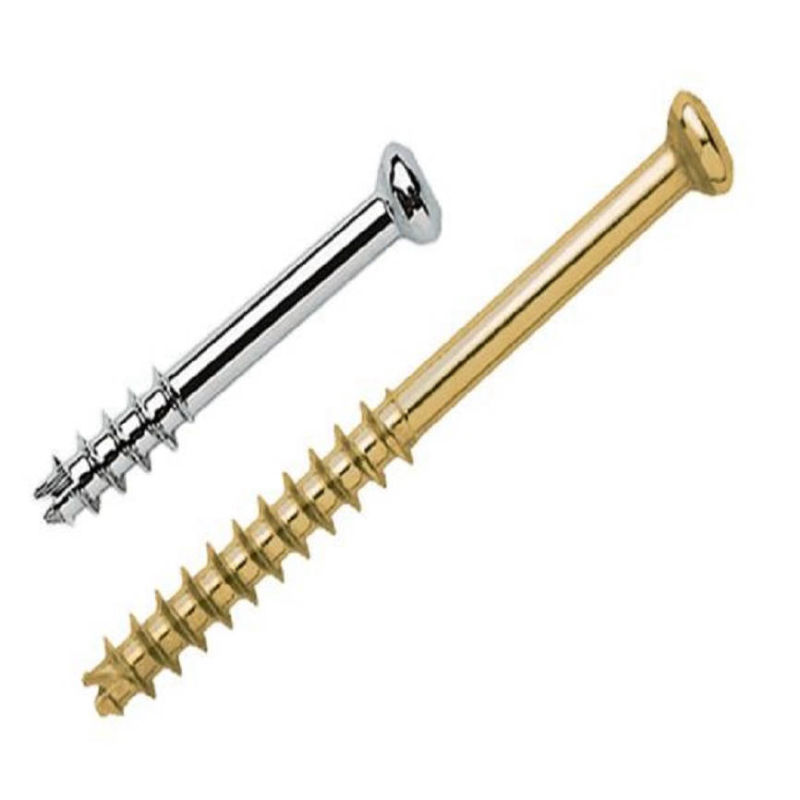

4.0mm Cannulated Screw
- Cannulated shaft accepts 1.25 mm diameter guide wires (threaded and non-threaded wires available).

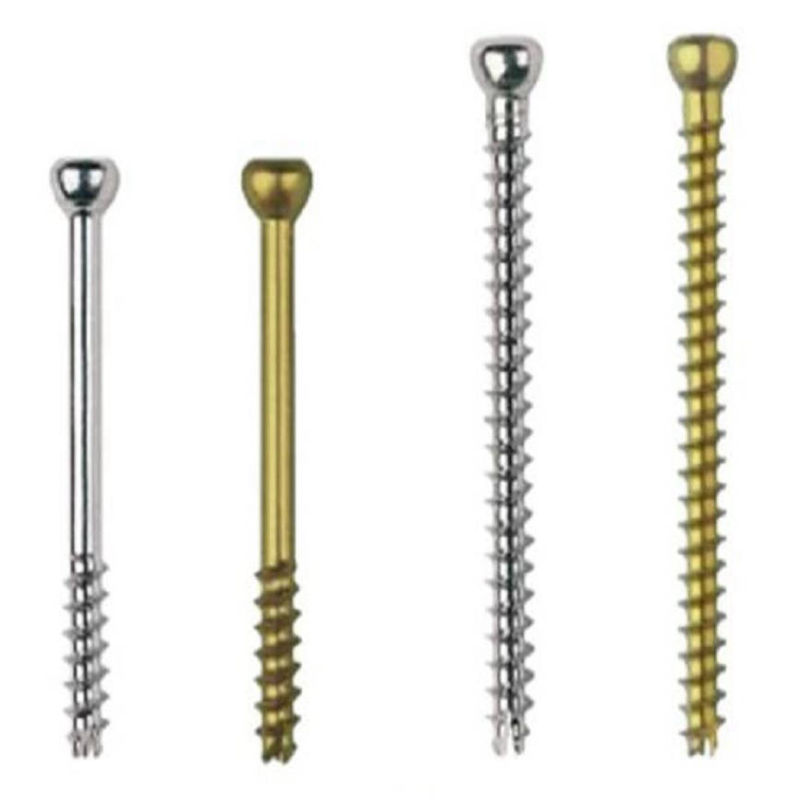

4.5 mm Cannulated Screws
- Cannulated shaft accepts 1.6mm diameter guide wires (threaded and nonthreaded wires available) .
4.5 mm LCP® Proximal Tibia Plate
- Anatomically contoured to approximate the lateral aspect of the proximal tibia .

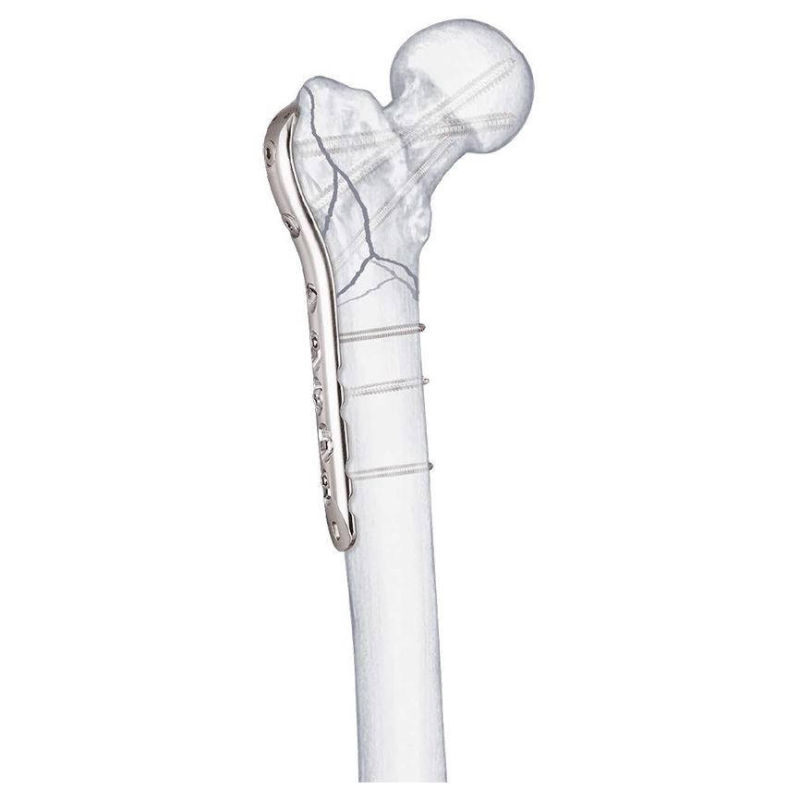

4.5mm LCP® Proximal Femur Plate
- Anatomically contoured to approximate the lateral aspect of the proximal femur.

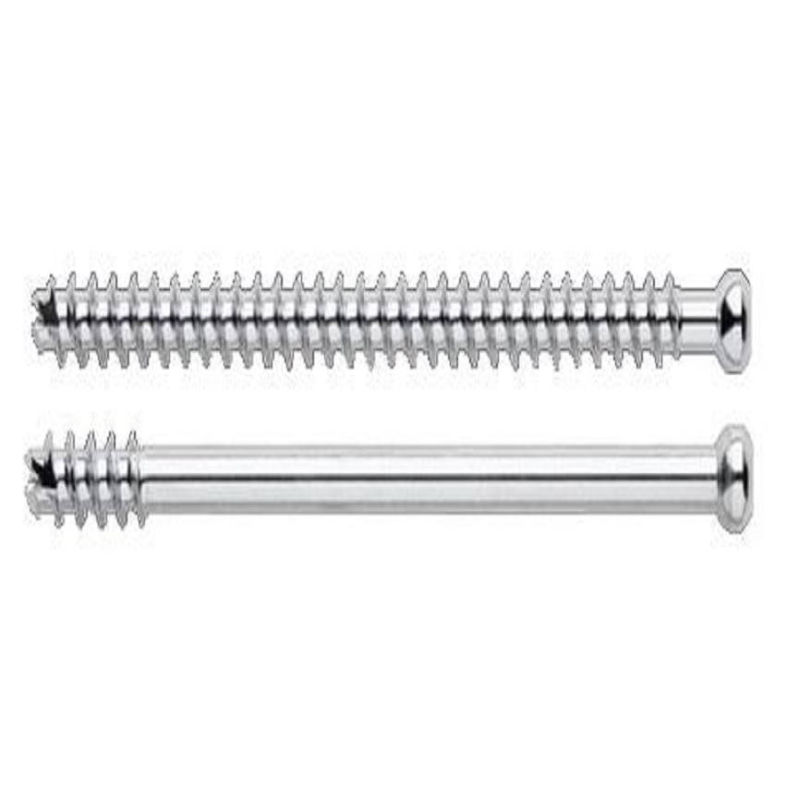

6.5 mm and 7.3 mm Cannulated Screws
- Cannulated shaft accepts 2.8 mm diameter guide wires.
BME CCI
Super-elastic material that can store energy and transfer it onto bone in order to achieve compression. The goals of nitinol are to minimize the effects of bone resorption and maintain a stable construct.

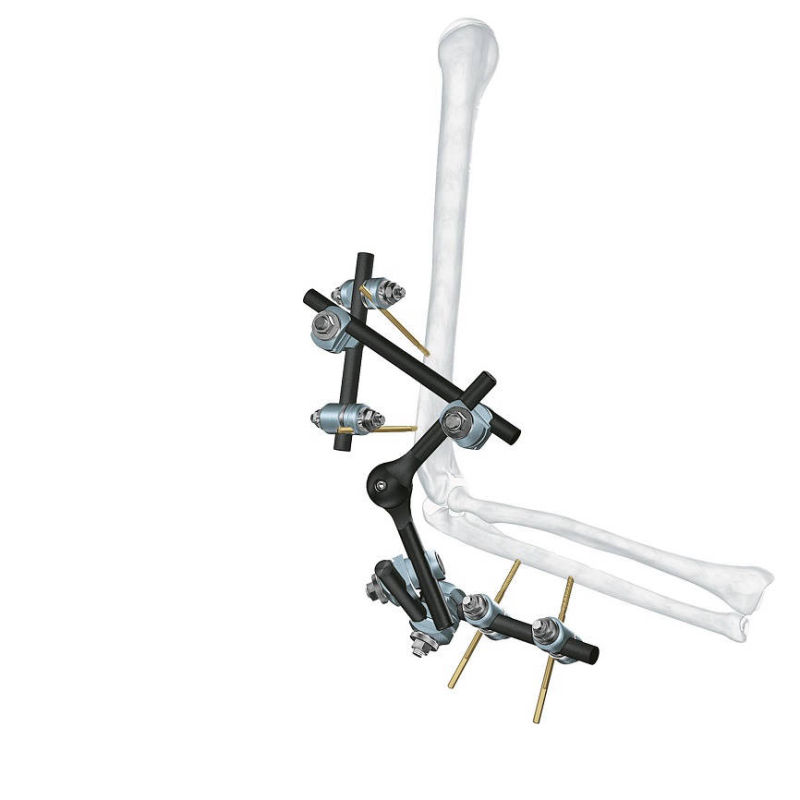

Elbow Hinge Fixator
Independent pin placement

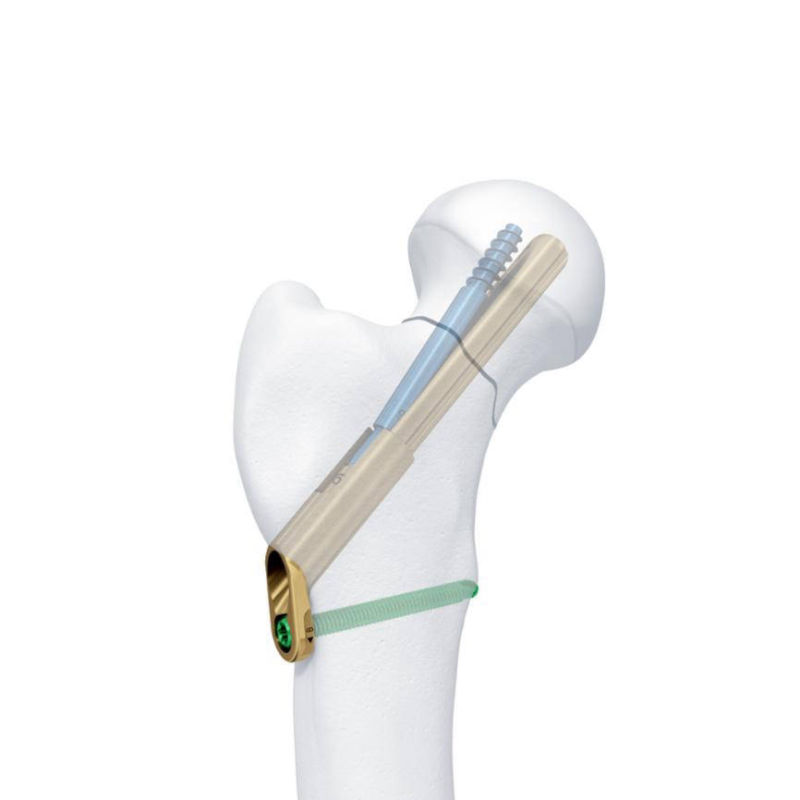

Femoral Neck System (FNS)
Enhanced Fixation
Flexible Reamers for Intramedullary Nails
The thin, flexible shaft and deeply fluted reamer heads are designed to help reduce intramedullary pressure and increase flow of bone chips and marrow during reaming.

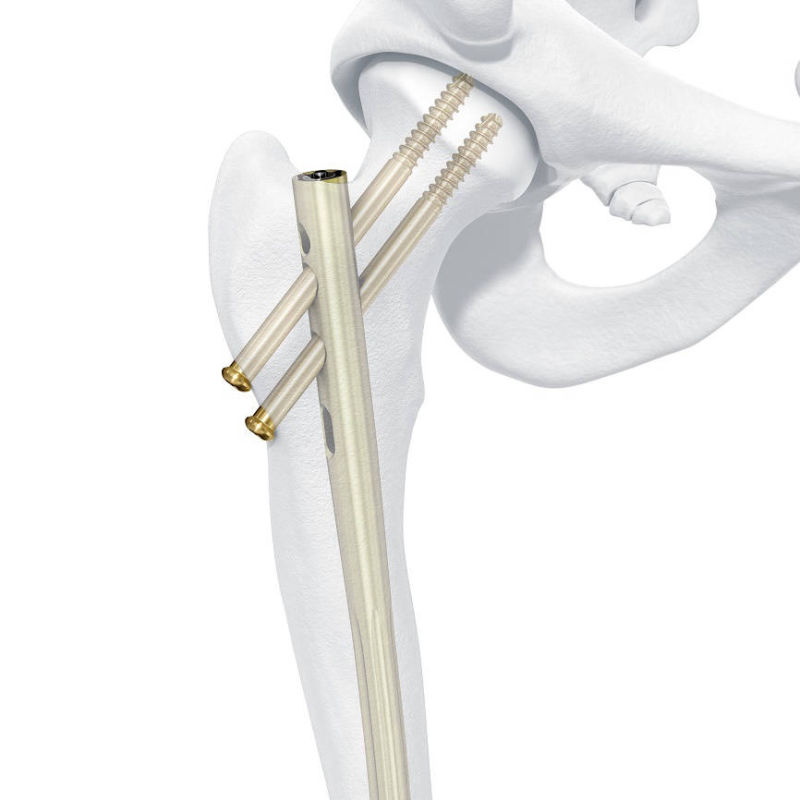

Femoral Recon Nail
The DePuy Synthes Femoral Recon Nail System offers an extensive range of surgical entry points and locking options to meet more surgeons’ needs for femoral shaft fractures.

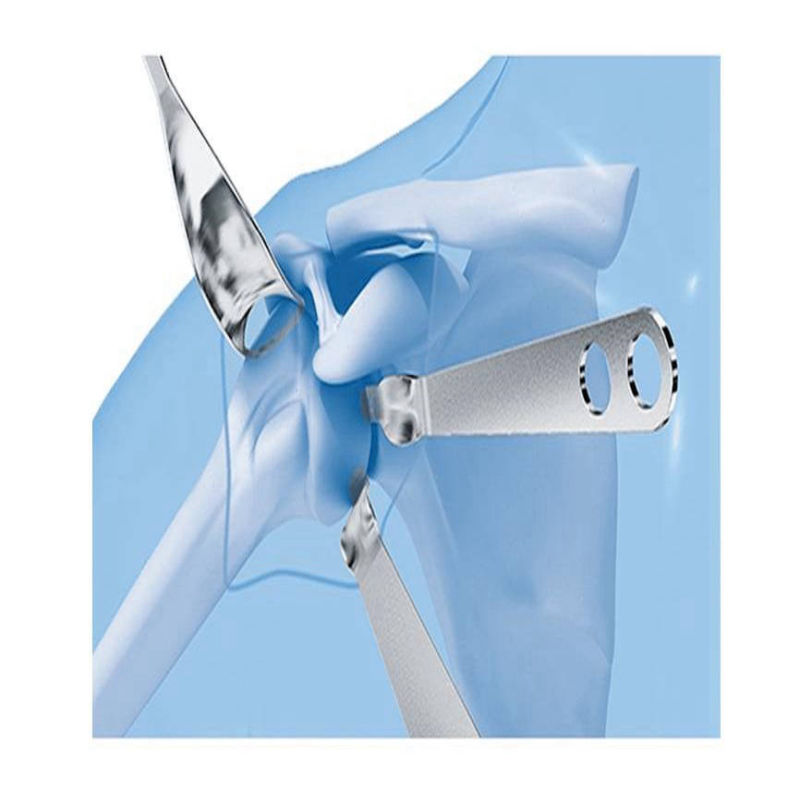

General Shoulder Instruments
In shoulder surgery, the approach is of primary importance. The challenge arises from the regional complexity of anatomical structures and layers, which impede wide access to bony structures. Therefore, special surgical strategies are necessary for preservation of soft tissue and careful exposure.

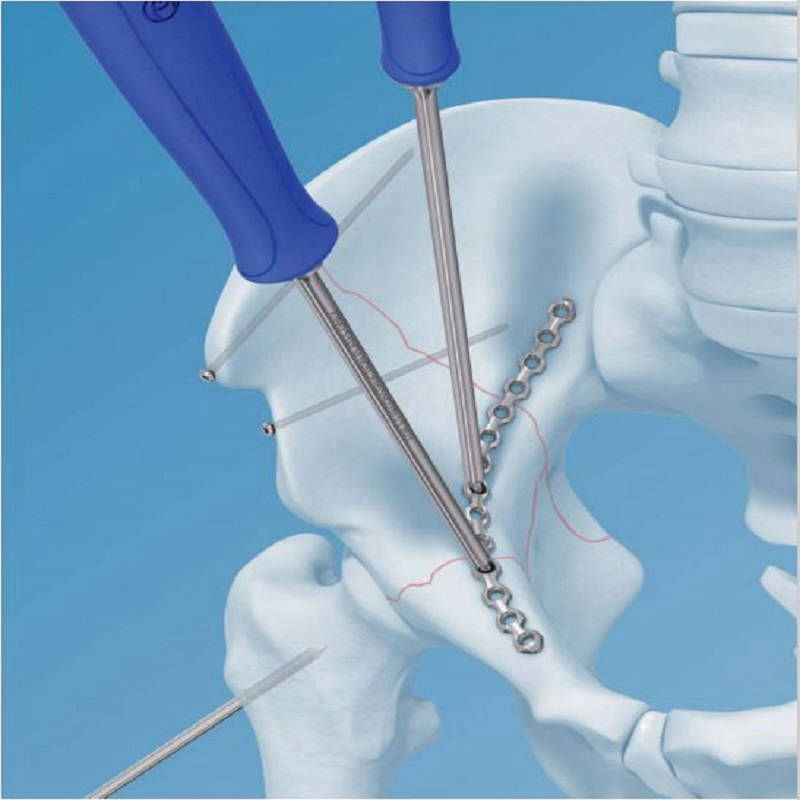

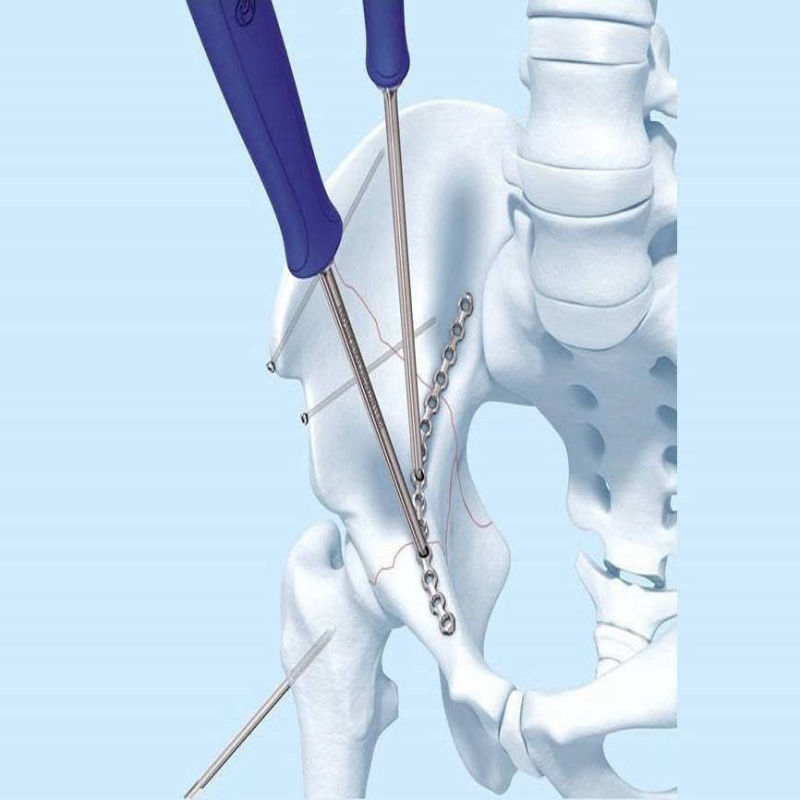

In-situ Bending Instrument Set
Three In-situ Bending and Twisting Handle options: straight, 90°, 120°

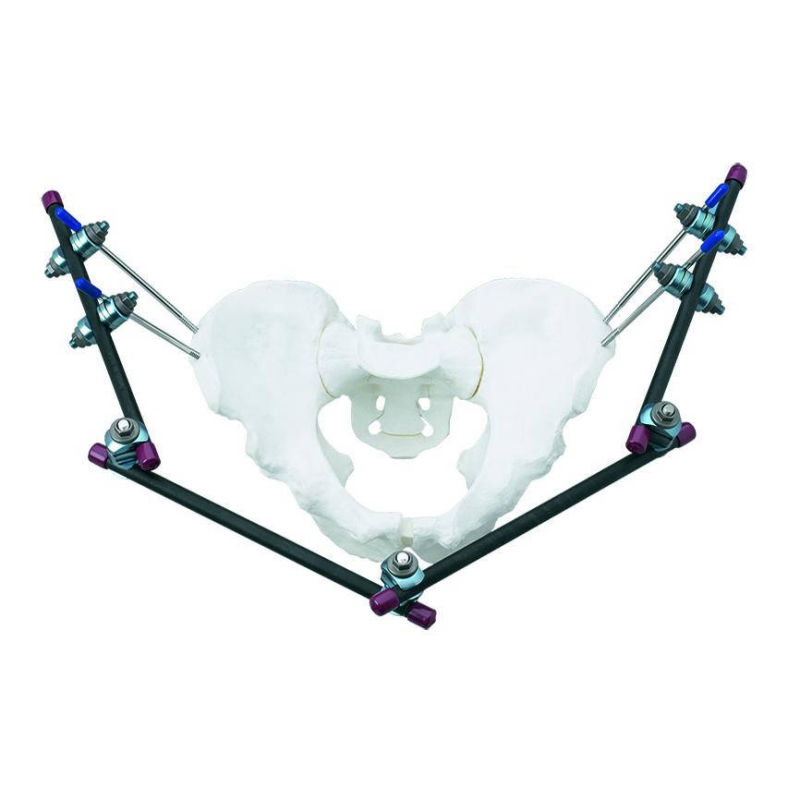

Large External Fixator-Pelvic Frame
Features & Benefits
Supra-acetabular frames

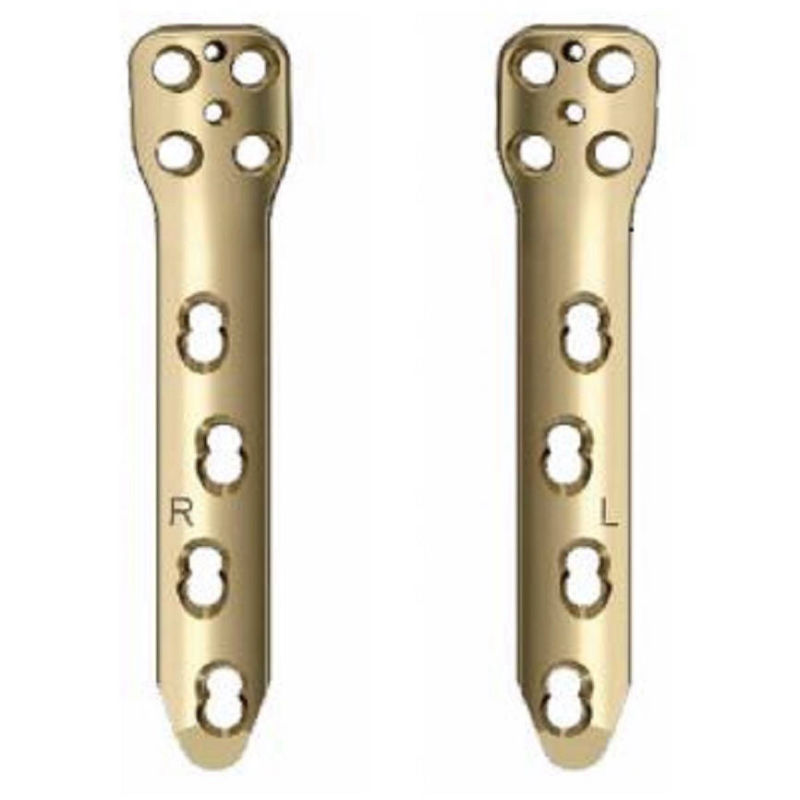

LCP® Distal Femur Plate with LISS™ technique option
Features & Benefits
- Plates can be used with the LISS Plate technique and aiming instrumentation
.
- Round threaded locking holes in plate head accept 5.0 mm locking screws and 4.5 mm cortex screws.

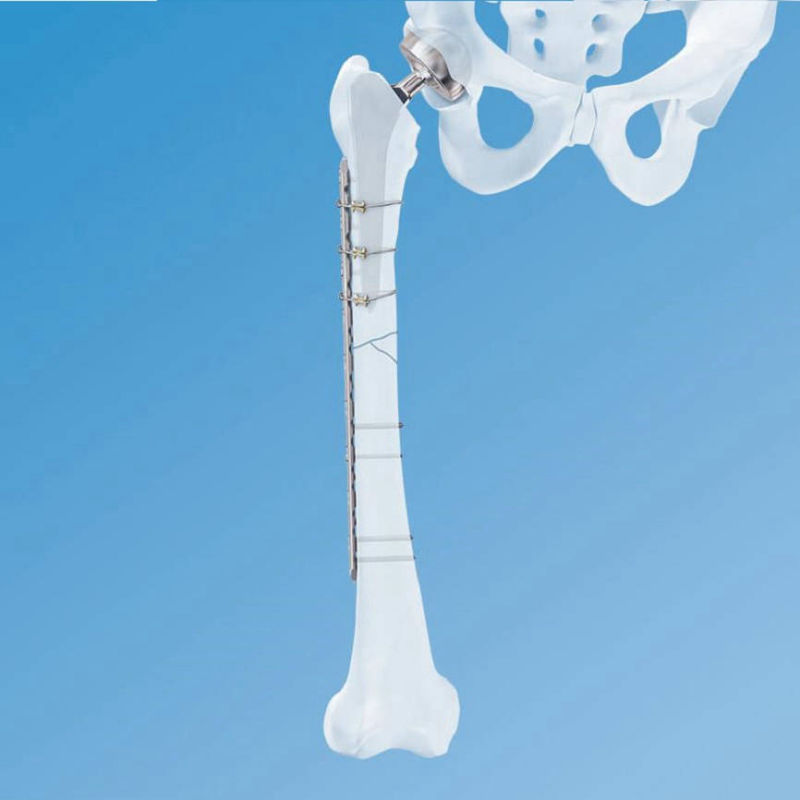

LCP® Periprosthetic System
Features & Benefits
4.5 mm Curved Broad LCP Plates
- Precontoured to mimic the anterior-posterior bow from the lateral aspect of the femur.
- Tapered, rounded tip facilitates application during minimally invasive surgical procedures.
5.0 mm Periprosthetic Locking Screws
- For use with 4.5 mm LCP Plates.
- T25 StarDrive™ Recess.
- Self-tapping flutes.

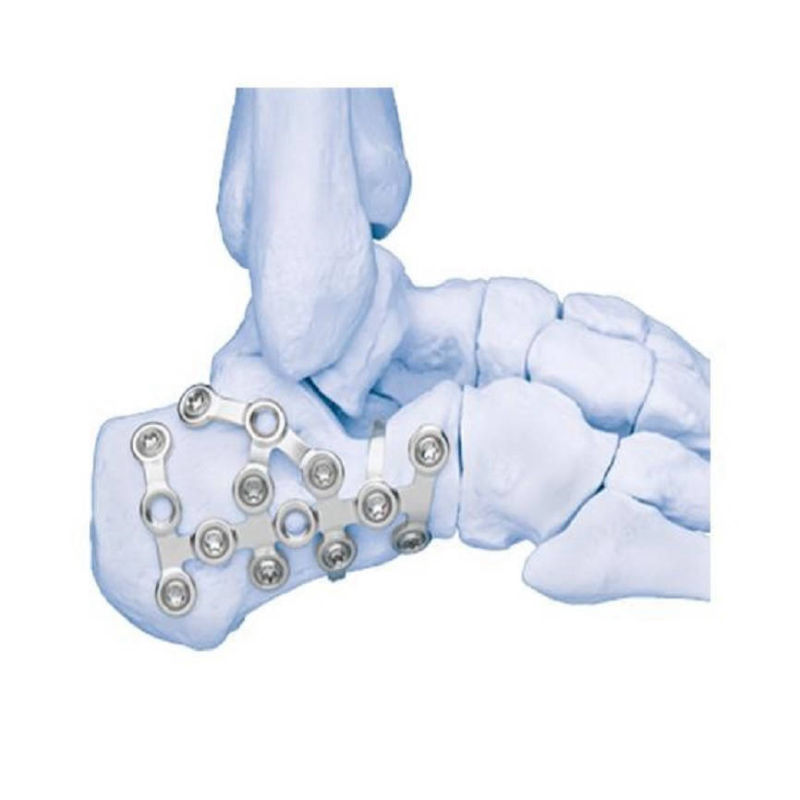

Locking Calcaneal Plate
Features & Benefits
Locking Calcaneal Plates address complex fractures of the calcaneus.

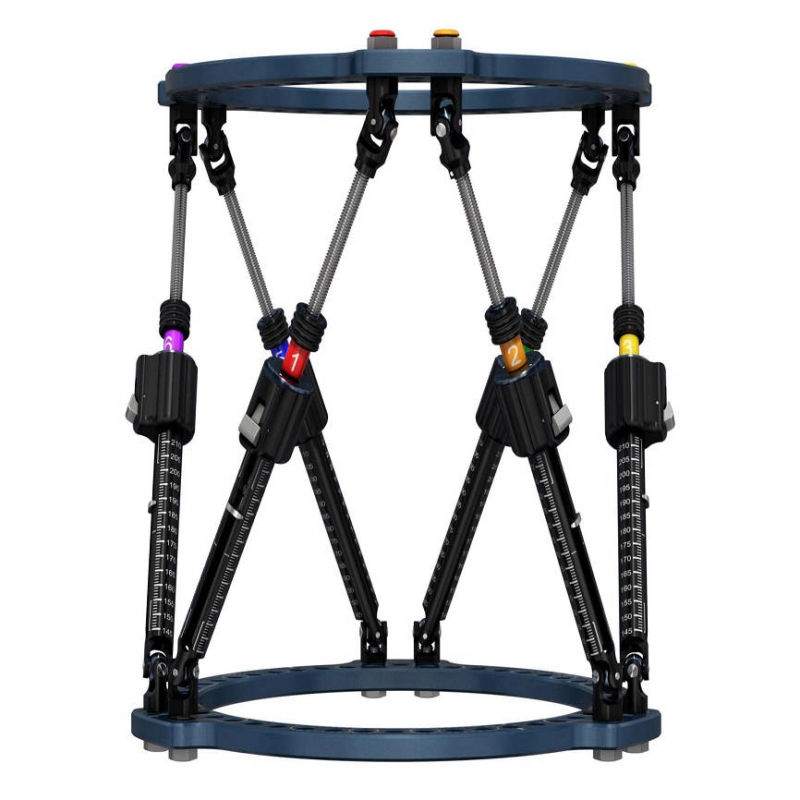

MAXFRAME™ Multi-Axial Correction System
Features & Benefits
The MAXFRAME™ Multi-Axial Correction System is a computer-assisted circular ring fixation system. The modular nature of MAXFRAME System enables surgeons to customize each frame to meet individual patient needs. Circular ring fixation frames are most commonly applied to the tibia, but also can be applied to the femur, the humerus, the foot, and the forearm.

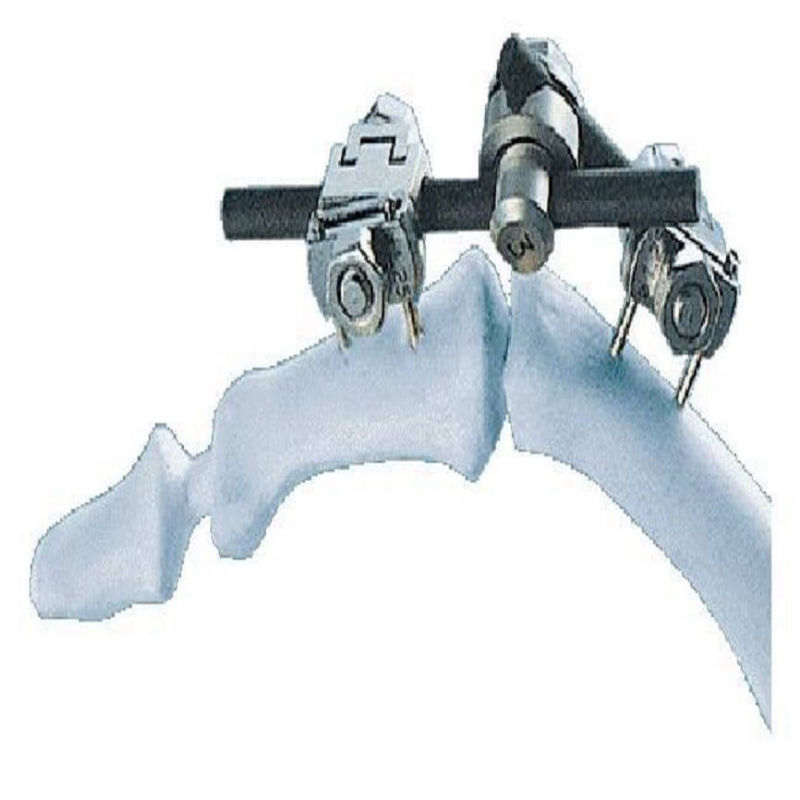

Mini External Fixator
Features & Benefits
Holding Clam
- Two clamp sizes, laser-etched with one or two lines for easy identification.
- Permits sequential tensioning of Kirschner wires allowing for reduced operative time.
- Slender design contributes to overall low-profile frame for improved patient comfort.

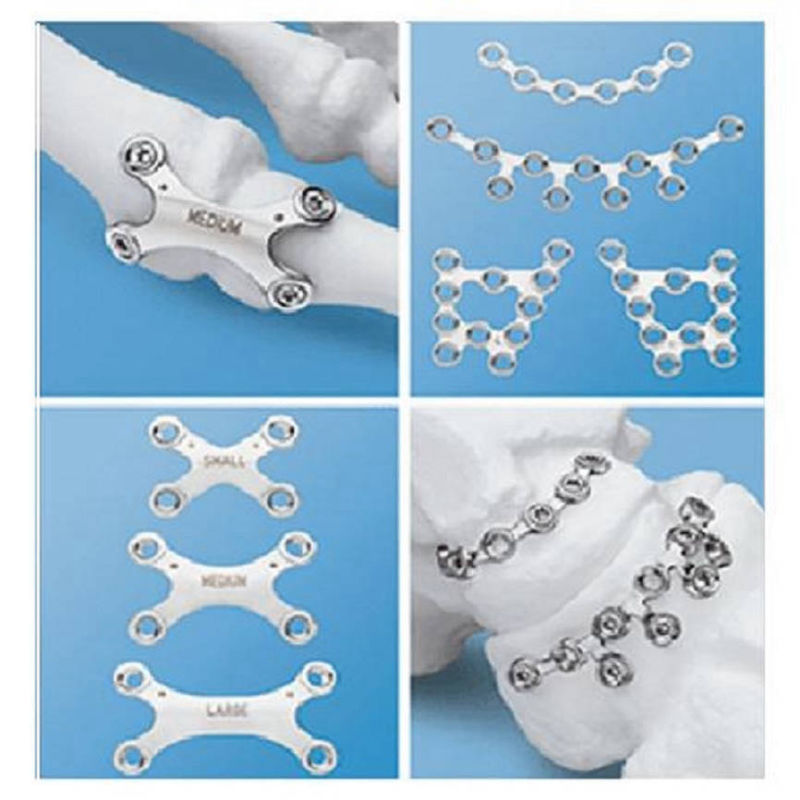

Modular Foot System
Features & Benefits
- Modules for 2.0 mm/2.4 mm, 2.7 mm and 3.5 mm/4.0 mm plates and screws and for Kirschner wires.
- Stainless steel implants for strength and ease of removal.
- Self-tapping screws for easy insertion.

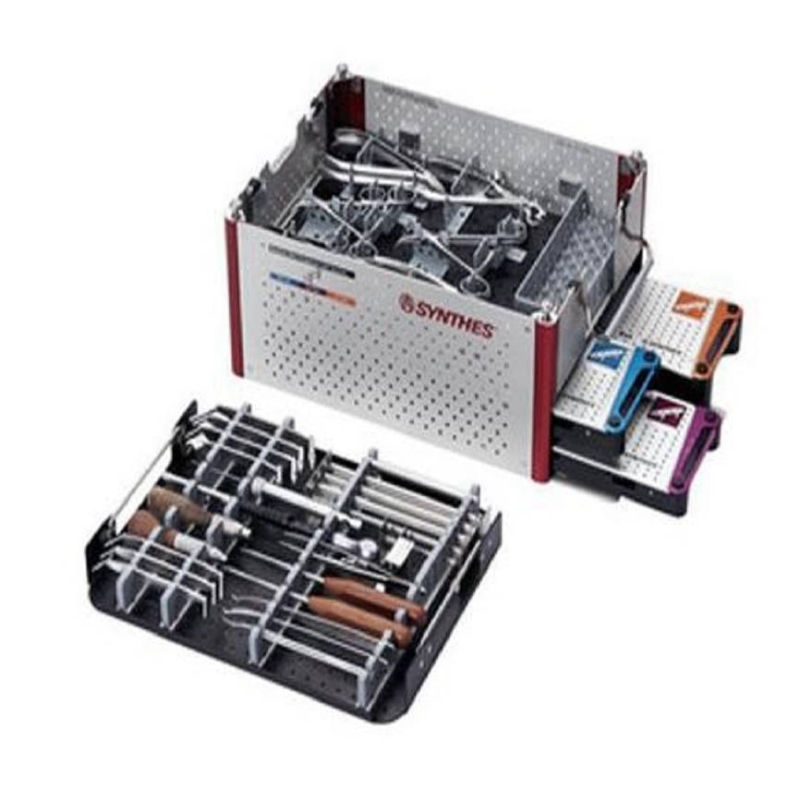

Modular Mini Fragment LCP® System
Features & Benefits
- Low profile plates to reduce soft tissue irritation.
- Cut-to-length feature reduce inventory.
- Combi holes in the LCP Plates allow for use of a cortex screw in the compression side of the hole or a locking screw in the threaded side of the hole.

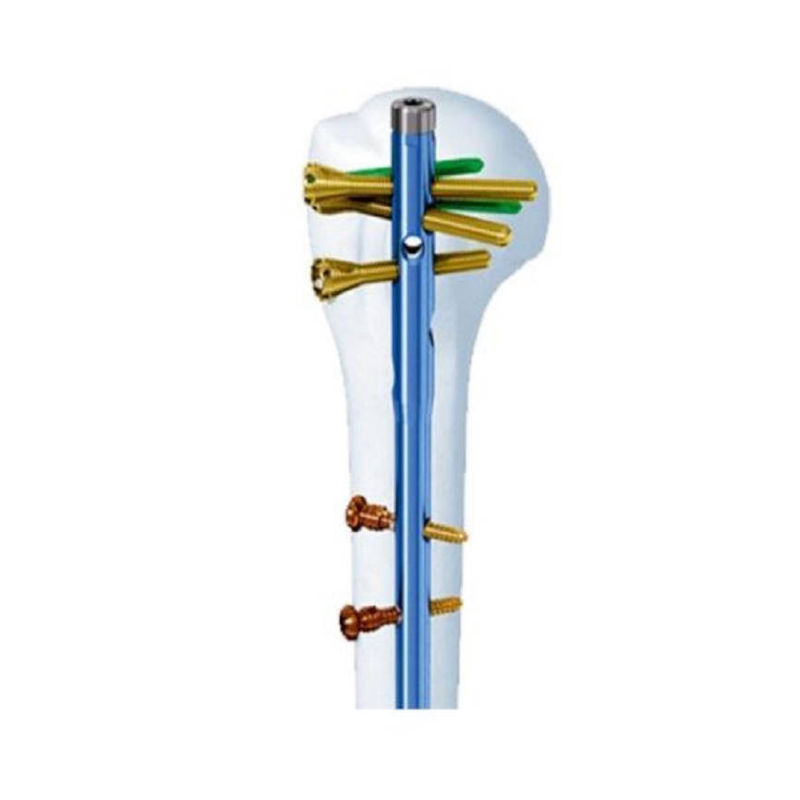

MultiLoc® Humeral Nail
Features & Benefits
The system includes several innovative features designed specifically for the clinical needs of humeral nailing
- Straight nail with central insertion point designed to avoid potential insertion through the fracture site.
- Unique screw-in-screw option for improved stability.
- Polyethylene inlay for secure screw fixation of the proximal screws.

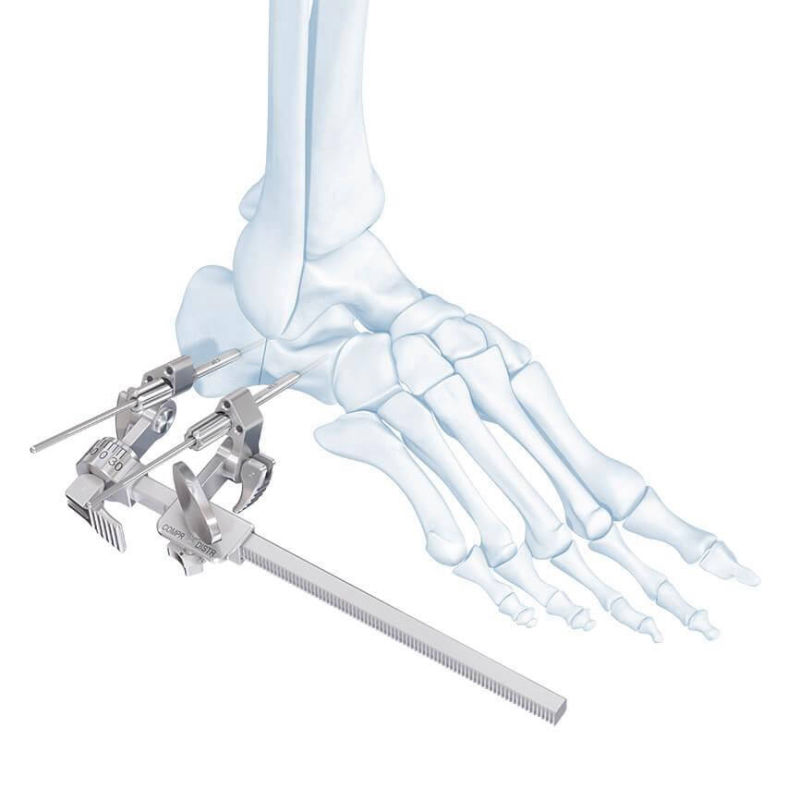

Orthopaedic Foot Instruments
Features & Benefits
Compression/Distraction Device Set
- Placement of 2.0 mm, 2.5 mm and 3.0 mm K-wires at various angles
- Precise compression /distraction mechanism.
Bone Harvesting Set
- Various trephine diameters enable accurate local bone grafting
Joint Preparation Set
- Silicon handles for optimal grip.

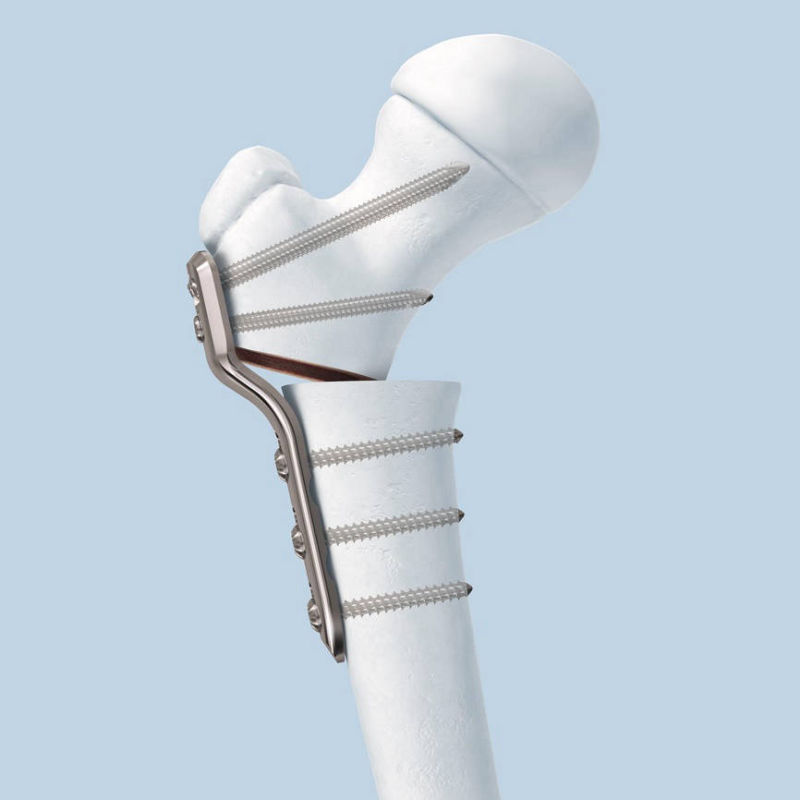

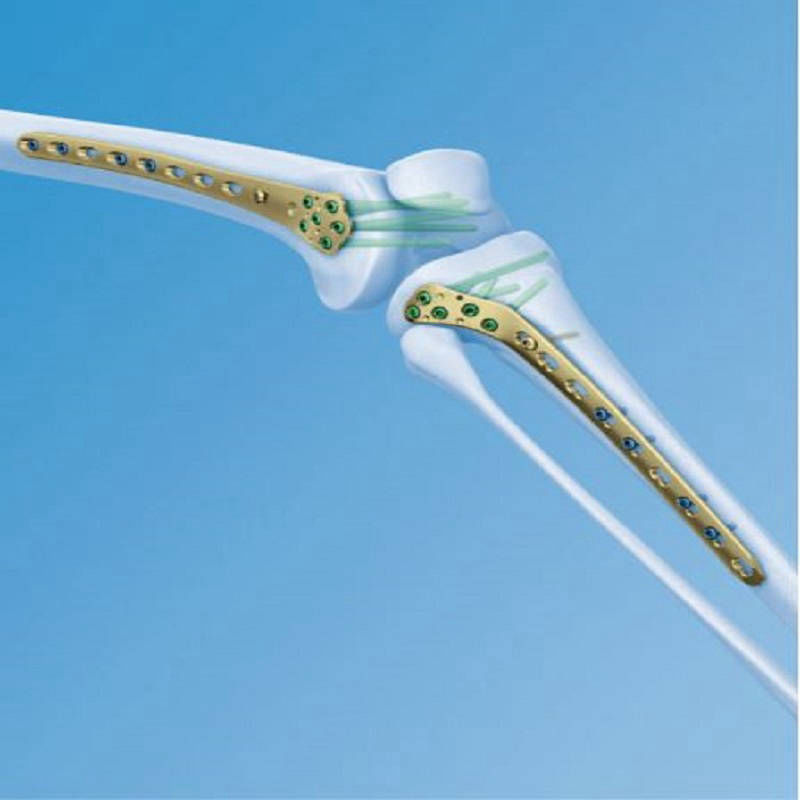

Pediatric LCP® Plate System
Features & Benefits
Angular stability
- Angular stability reduces the risk of primary and secondary loss of correction. Improved connections between screw and plate, as well as within the cortical bone, make casting unnecessary in the majority of cases. (However, it is recommended when using the 2.7 mm plate.).
Low profile
- Plate design and locking construct reduce muscle disruption and soft tissue irritation.

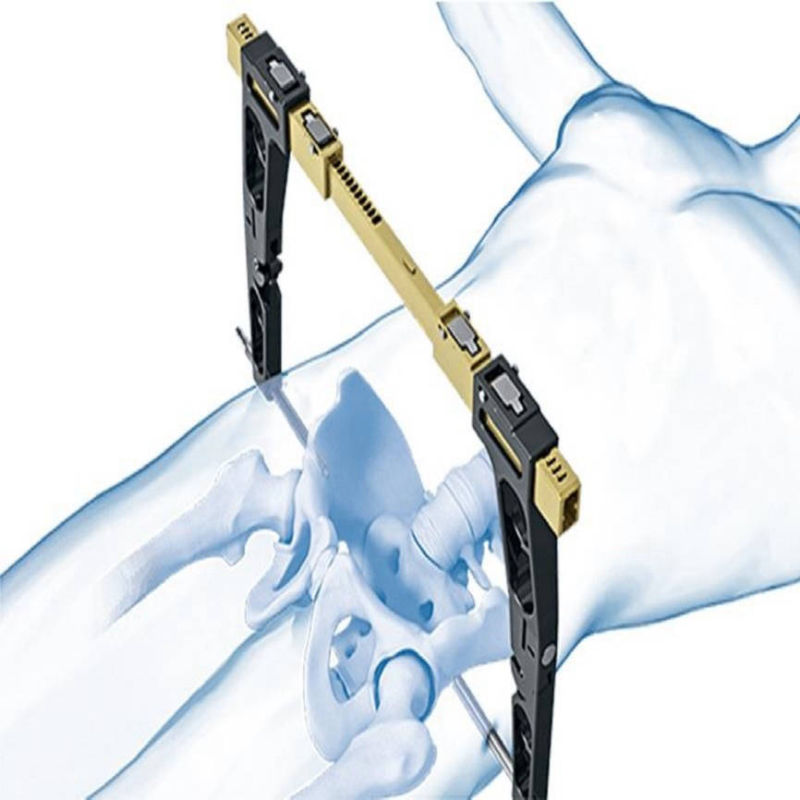

Pelvic C-Clamp II
Features & Benefits
Design
- Permits quick and efficient compression and stabilization of fractures or luxations, and control of hemorrhaging in the unstable posterior pelvic ring. Can be applied quickly outside the operating room, e.g. in the emergency room or on the x-ray table.
Locking Mechanism
- Prevents unintended loss of compression during movement of the pelvic C-clamp.
Cannulated Nail Design
- Allows clamp to be swung caudally and cranially, e.g. for a laparotomy or an angiography and provides unrestricted access to the abdomen, pelvis or proximal femur.

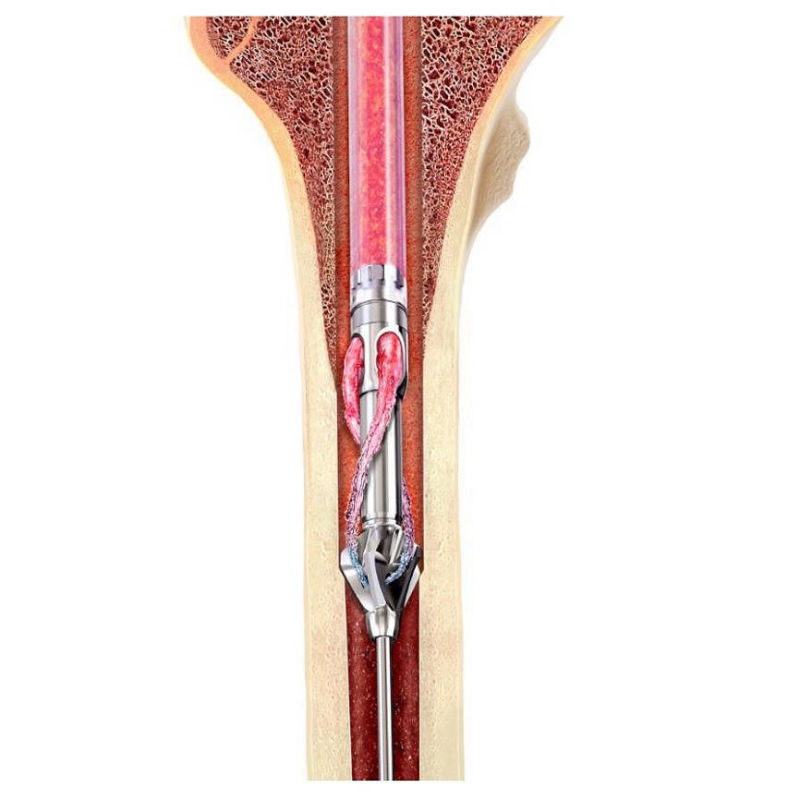

RIA 2 System (Reamer Irrigator Aspirator)
Features & Benefits
RIA 2 is intended for the clearing and sizing of the medullary canal, the harvesting of autograft, and the debridement of necrotic and infected tissues from the medullary canal.
- Designed for simplified assembly.
- For femur and tibia.
- More graft and lower pain scores.

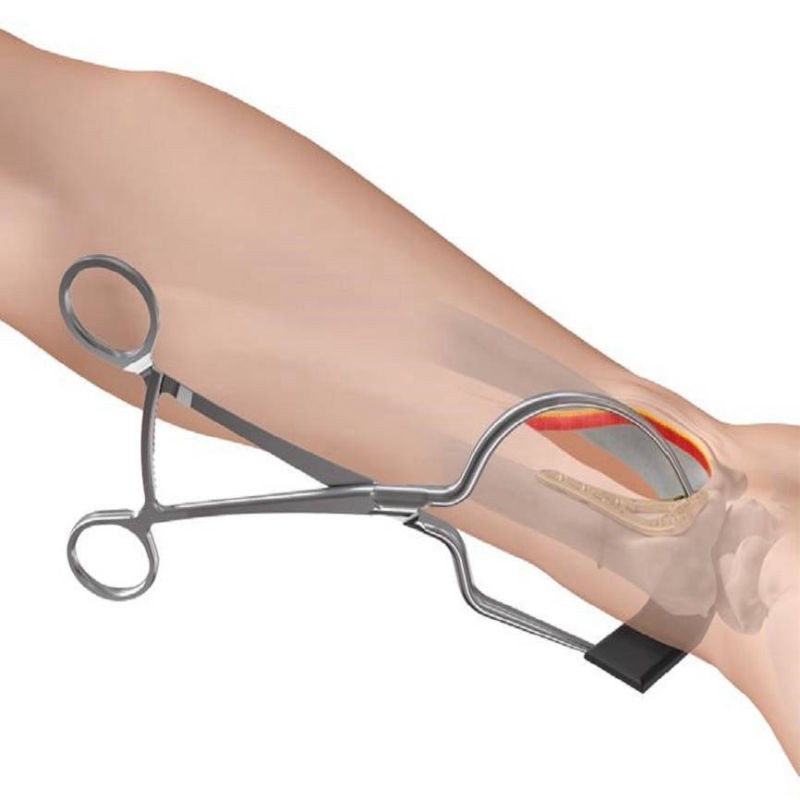

Soft Tissue Bone Reduction Forceps
Features & Benefits
The Soft Tissue Bone Reduction Forceps is a surgical instrument intended for facilitating reduction for distal radius fractures following the volar approach. It is compatible with DePuy Synthes VA LCP® Volar Distal Radius Plates and has a radiolucent J-shaped soft tissue attachment.

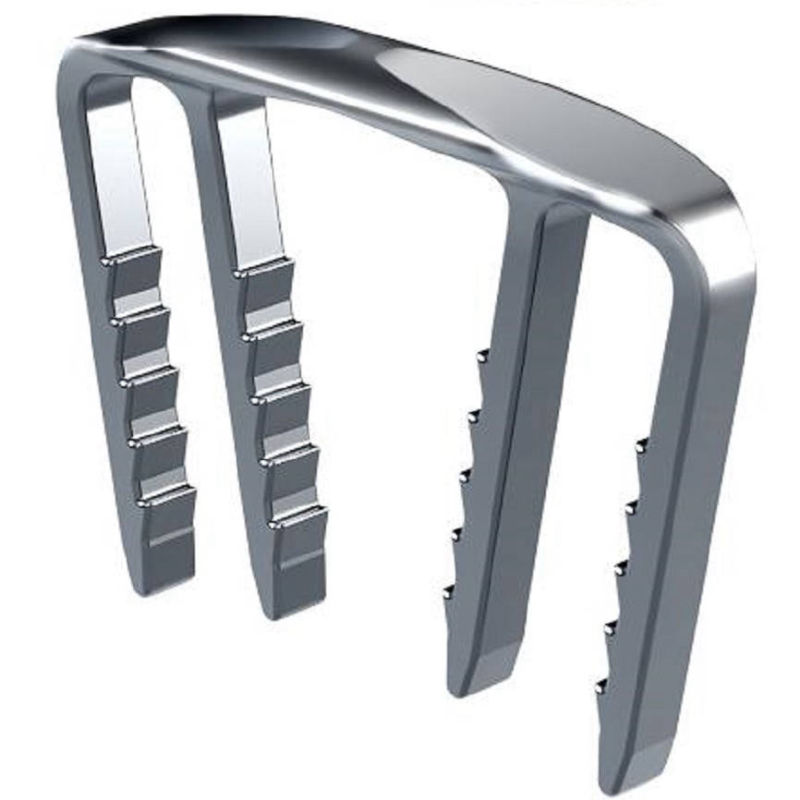

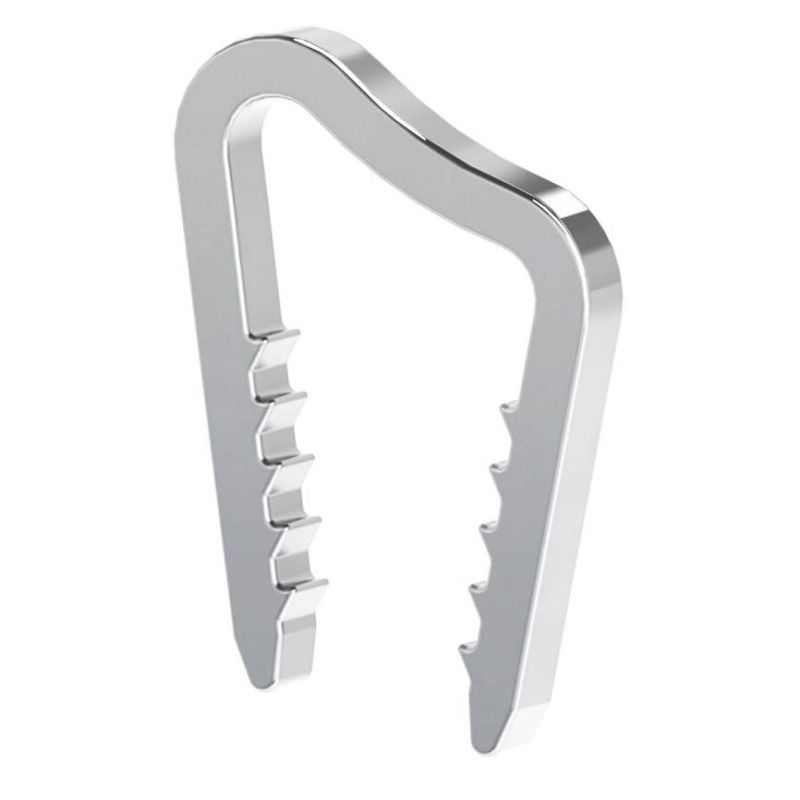

SPEEDARC® Nitinol Compression Implant
Features & Benefits
Implant Profile
- Anatomic bridge design that conforms to the sloping surfaces found on metaphyseal flares.
- Provides continuous active compression of bones.
- Barbed legs provide secure fixation and resist migration and back-out.
Sizing Tool
Includes sizing tool for accurate implant selection.

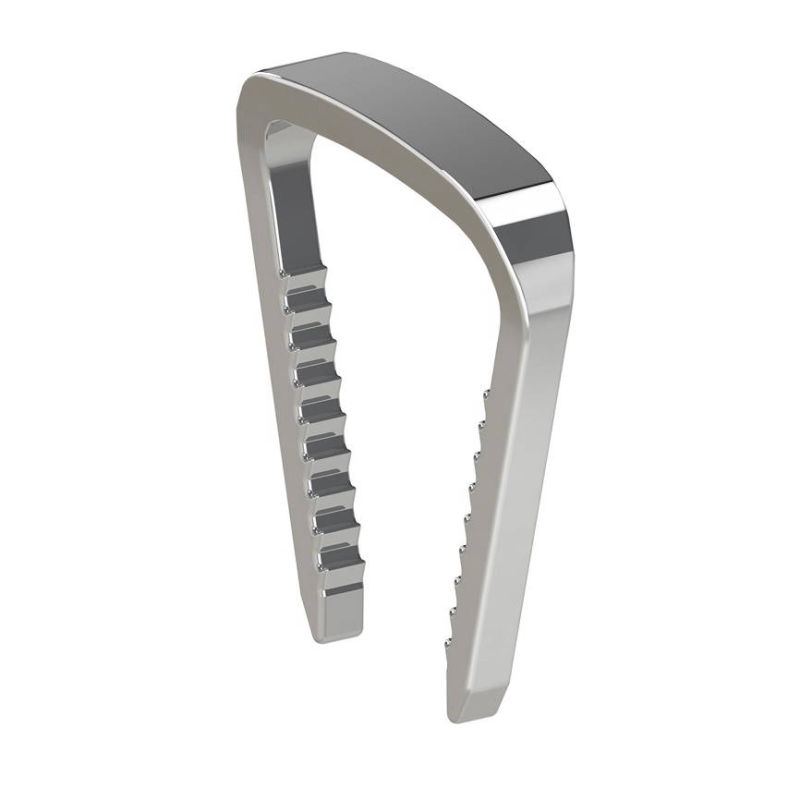

SPEEDTITAN® Compression Implant
Features & Benefits
Implant Profile
- Tapered body design with a wide, low-profile bridge for high strength and compression.
- Narrow legs to fit in smaller bone structures. Continuous active compression to enhance healing.
Sizing Tool
- Includes sizing tool for accurate implant selection.

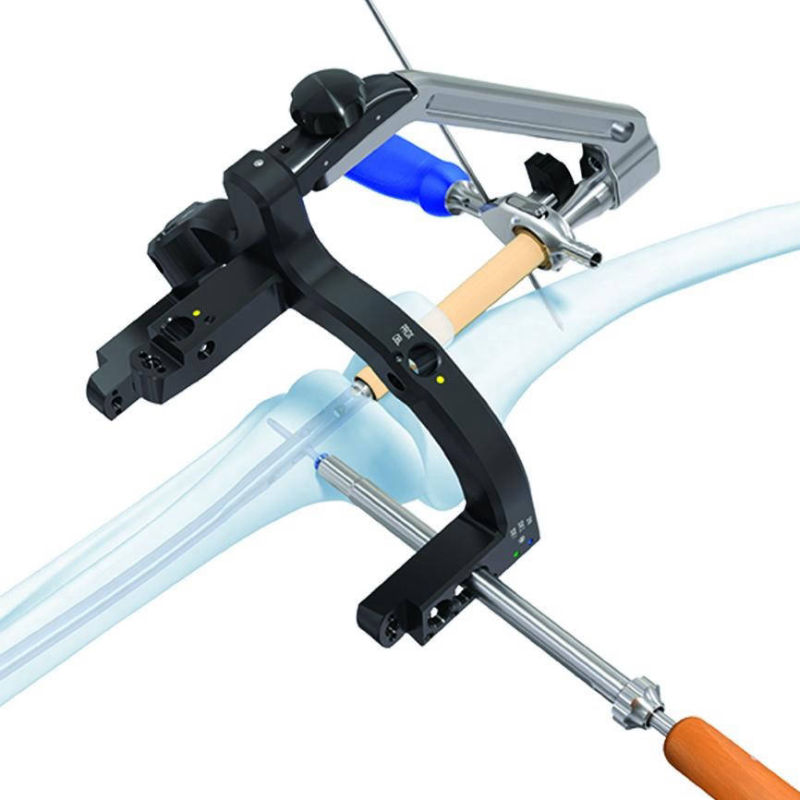

Suprapatellar Instrumentation for Titanium Cannulated Tibial Nail
Features & Benefits
Two-hole wire guides
- Offset hole to "dial-in" placement of the guide wire.
- Blunt tip.
- Gentle transitions.
Reusable PEEK opening trocars
- Reusable solid design.
- Smooth, rounded tip.
- Gentle transitions.

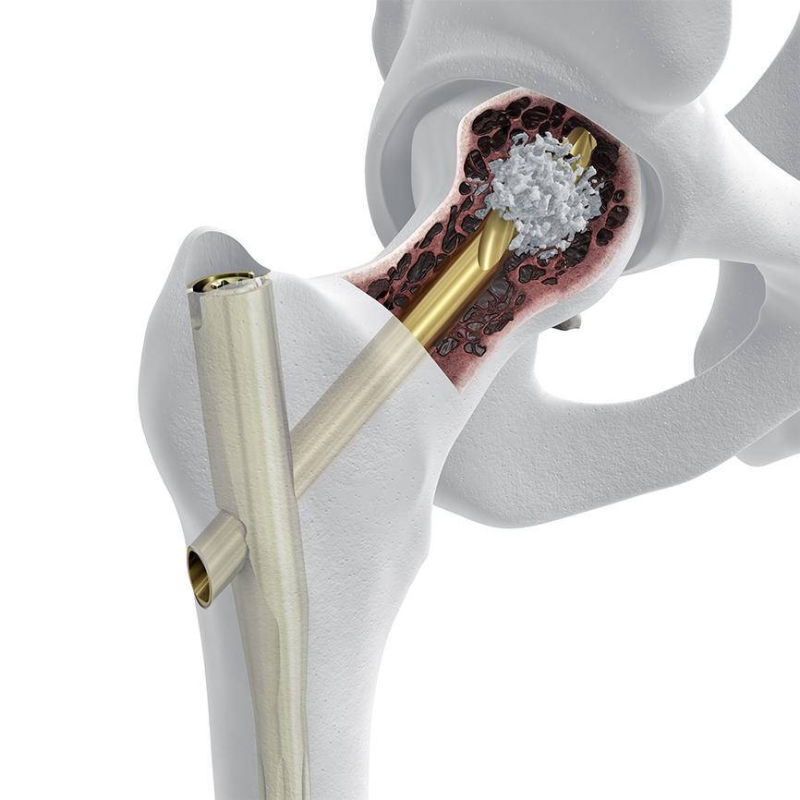

TFN-ADVANCED® Proximal Femoral Nailing System (TFNA)
Features & Benefits
The TFN-ADVANCED Proximal Femoral Nailing System (TFNA) is designed to advance hip fracture treatment with:
- Outcomes-based Design.
- Reduced Procedural Complexity.
- Comprehensive Surgical Options.

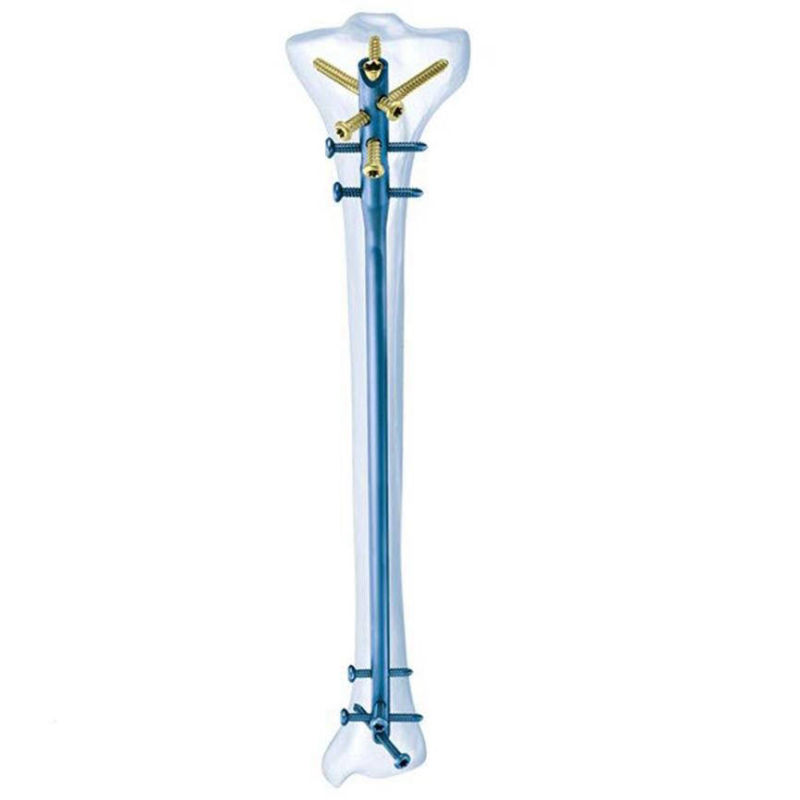

Titanium Cannulated Tibial Nail EX
Features & Benefits
Advanced nail design
- Titanium alloy (TAN) for improved mechanical and fatigue properties.
- Cannulated nails (8 mm to 13 mm diameters) for reamed or undreamed techniques, enabling nail insertion over guide wire.
- All Synthes 2.5 mm or 3.0 mm reaming rods with ball tip may be removed through the nail and insertion handle assembly (no exchange tube required).
TomoFix® Lateral Distal Femur Plate
Features & Benefits
- Precontoured to fit the lateral distal femur, reducing the need for intraoperative contouring and help minimize soft tissue irritation.
- Plates have tapered ends allowing minimally invasive plate insertion.
- Locking screws create a fixed-angle construct, providing angular stability.
- Combi holes provide the flexibility of axial compression and locking capability.
TomoFix® Medial Distal Femur Plate
Features & Benefits
- Precontoured to fit the medial distal femur, eliminating the need for intraoperative contouring and reducing soft tissue irritation
.
- Plates have tapered ends allowing minimally invasive plate insertion.
- Locking screws provide multiple fixed-angle constructs throughout the plate, improving retention of the screws in the plate and in cortical bone.
- Combi holes provide the flexibility of axial compression and locking capability.

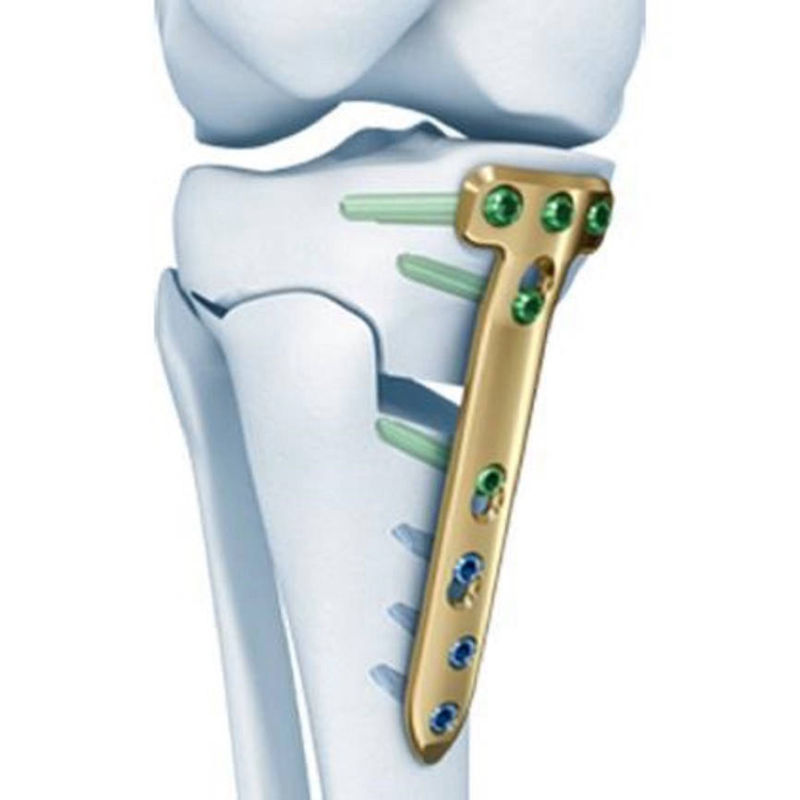

TomoFix® Medical High Tibia Plate
Features & Benefits
- Precontoured to fit the medial proximal tibia, eliminating the need for intraoperative contouring and reducing soft tissue irritation.
- Available in 2 sizes, standard and small, to accommodate patients anatomy.
- Long shaft to support and deflect forces in the diaphysis.
- Plates have tapered ends allowing minimally invasive plate insertion.
- Locking screws create a fixed-angle construct, providing angular stability.

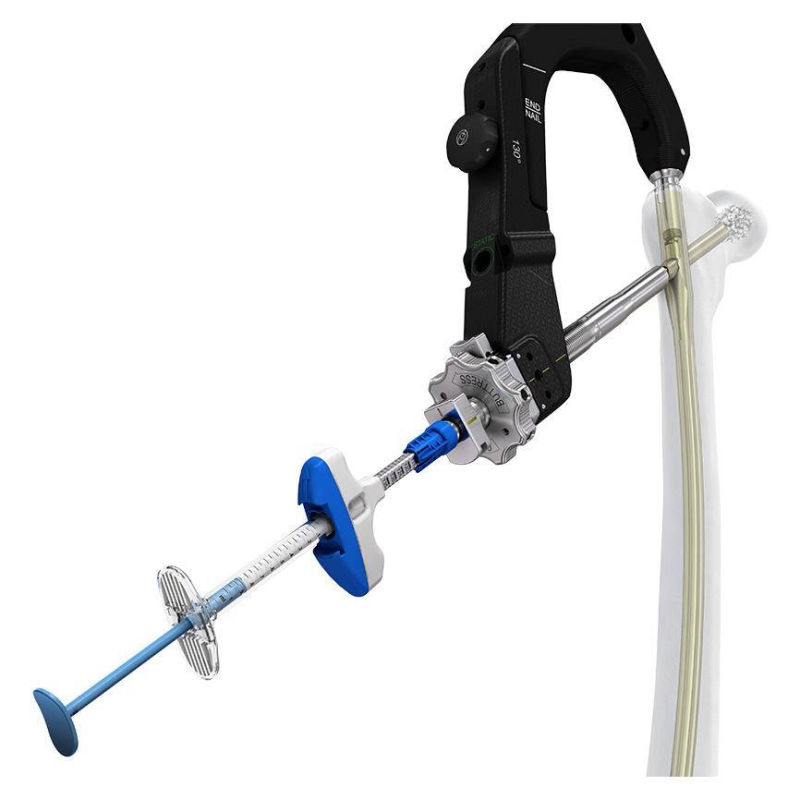

TRAUMACEM™ V+ Augmentation System
Features & Benefits
Comprehensive Surgical Solutions
- Blade/screw head element.
- Locking options.
- Nail lengths & diameters.
Head element design enables intraoperative decision making
- Fenestrated head elements perform equivalent to solid head elements, thus enabling choice of augmentation with a single implant design.

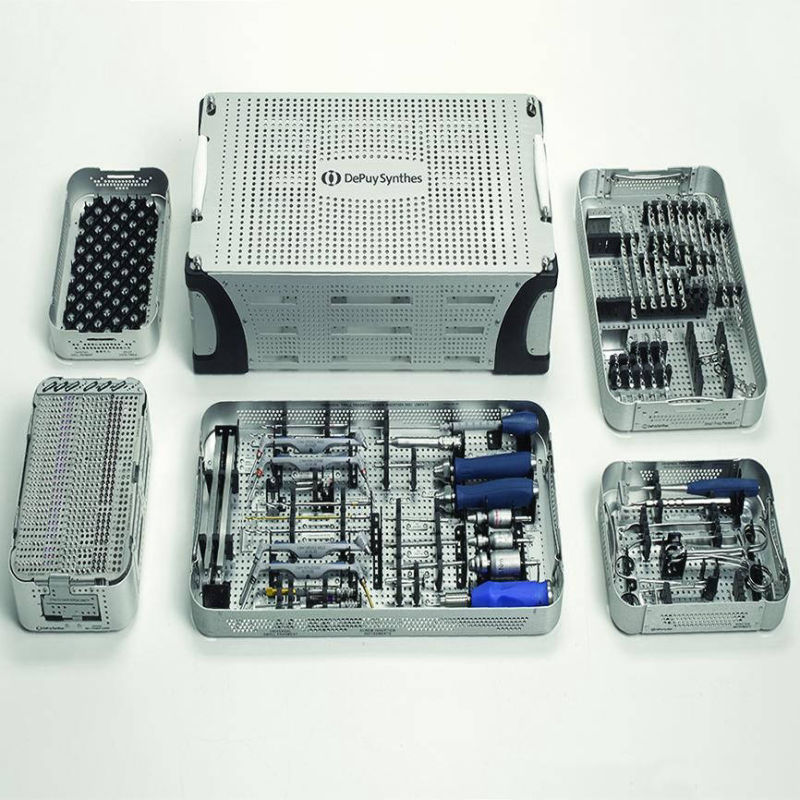

Universal Small Fragment System
Features & Benefits
Ease of Use
- Universal Small Fragment, USF, streamlines instruments and implants into a compact, modular system that can be used for all Small Fragment cases.
Improved Efficiency
- Retrieving fewer sets may mean a faster setup of operating room for trauma.

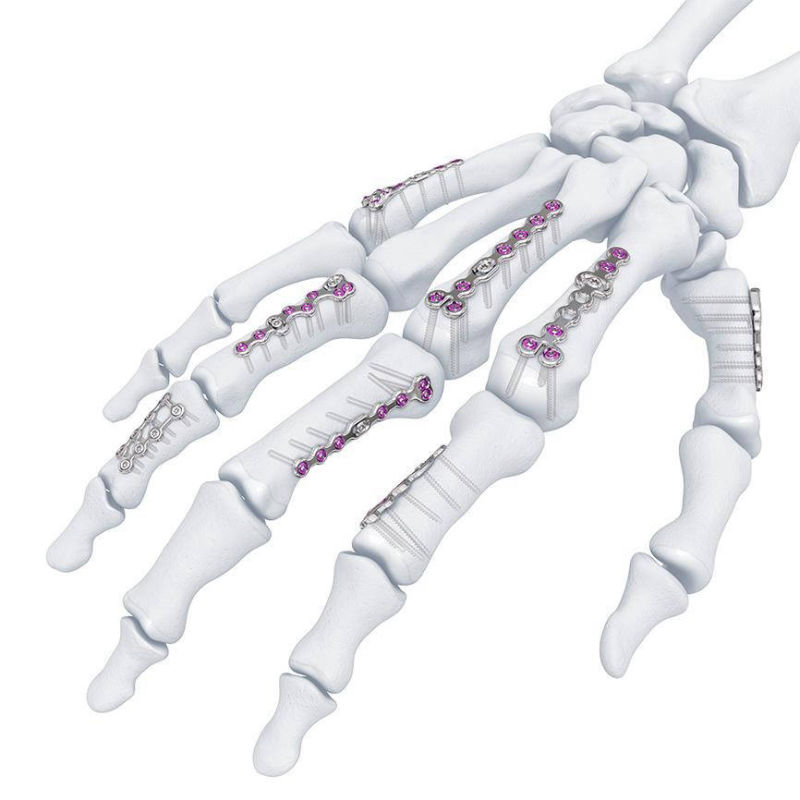

Variable Angle Locking Hand System
Features & Benefits
Versatility
- 40 plate designs, including plates for fracture repair and deformity correction .
- Basic and specialty plates to treat both simple and complex cases.
Low-Profile & Pre-Contoured Plates
- Recessed screw heads designed to sit flush with the plate.
Comprehensive Instrumentation
- Plate Holding Forceps with Soft Lock helps facilitate surgical procedures.
Strength & Stability with Locked Plating
- Designed to provide fixed angle stability for metaphyseal and osteopenic bone.
